Cat6 Plenum Cmp Ethernet Utp Bulk Cable
- Payment Type:
- L/C, T/T
- Incoterm:
- FOB
- Min. Order:
- 100 Pack/Packs
- Min. Order:
- 100 Pack/Packs
- Delivery Time:
- 25 Days
- Transportation:
- Ocean, Land, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen |
|---|---|
| Productivity: | 20 kilometer/ day |
| Payment Type: | L/C,T/T |
| Incoterm: | FOB |
| Certificate: | RoHs, ISO9001,CCC |
| Transportation: | Ocean,Land,Air |
Description

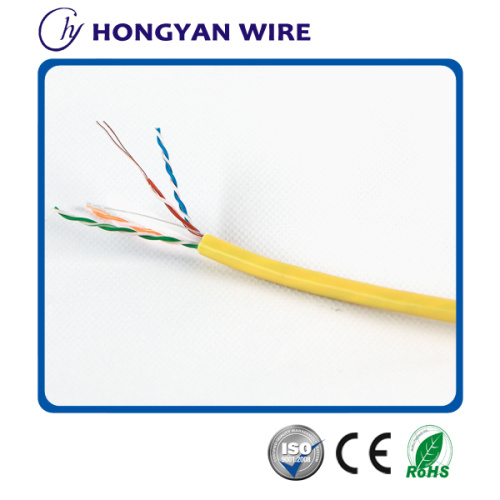

Cat 6 UTP 250 Mhz 23AWG Cu 305 meters cable in pull box.
The Cat 6 cable has been designed to distribute data, voice and video. It features 4-pair unshielded twisted pair cable with true 23AWG/0.57 mm solid conductor.
Every one of the four pairs of this cable has differing precise number of twists per inch designed to minimize crosstalk between the pairs, and insure performance with high speed Gigabit Ethernet.
Standards
ISO/IEC11801
ANSI/EIA/TIA-568-B.2-1
Conductor
Class 1 solid plain copper
Conductor Size:
4 x 2 x 0.57mm (23AWG)
Insulation:
HDPE (High Density Polyethylene)
Jacket:
PVC (Polyvinyl Chloride)
Core Identification:
Blue, white/blue;
Orange, white/orange;
Green, white/green;
Brown, white/brown
Construction
Specification
|
Conductor |
Thick. of Insulation mm |
Nominal O.D. mm |
Nominal Weight Kgs/305m box |
|
23AWG |
1.03±0.005 |
6.3±0.2 |
13 |
Electrical Characteristics:
Max. Conductor Resistance: 7.0Ω/100m
Min. Insulation Elongation: 300%
Max. Resistance Unbalance: 2.3%
Min. Propagation Velocity: 0.622C m/s
Min. Conductor Elongation: 20%
Characteristic Impedance: 100±15Ω
Min. Insulation Resistance: 7000MΩ/km
|
Frequency MHz |
Attenuation dB/100m |
NEXT dB |
PS-NEXT dB |
RL dB |
ELFEXT dB |
PS-ELFEXT dB |
|
1 |
1.9 |
74.0 |
72.3 |
20.0 |
68.0 |
65.0 |
|
4 |
3.7 |
65.0 |
63.3 |
23.0 |
56.0 |
53.0 |
|
8 |
5.3 |
60.7 |
48.8 |
24.5 |
49.9 |
46.9 |
|
10 |
5.9 |
59.0 |
57.3 |
25.0 |
48.0 |
45.0 |
|
16 |
7.5 |
56.0 |
54.2 |
25.0 |
43.9 |
40.9 |
|
20 |
8.4 |
55.0 |
52.6 |
25.0 |
42.0 |
39.0 |
|
25 |
9.5 |
53.3 |
41.3 |
24.3 |
40.0 |
37.0 |
|
31.25 |
10.6 |
52.0 |
49.9 |
23.6 |
38.1 |
35.0 |
|
62.50 |
15.4 |
47.0 |
45.4 |
21.5 |
32.1 |
29.1 |
|
100 |
19.8 |
44.0 |
42.3 |
20.1 |
28.0 |
25.0 |
|
200 |
29.0 |
40.0 |
37.8 |
18.0 |
22.0 |
19.0 |
|
250 |
32.8 |
38.0 |
36.3 |
17.3 |
20.0 |
17.0 |
Packing:
305 meters per inner box,
2 boxes per out box
