4 pair 23awg cat 5 utp cable fluke test
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong, China (Mainland) |
|---|
Specifications
1.Conductor material:copper,CCC,CCAG,CCA
2.Pass Fluke Test
3.ISO,CE,RoHS certification
4.OEM

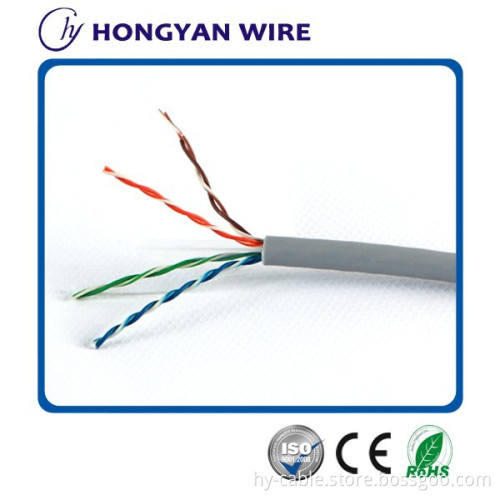

cable utp cat 5e
Application: Category 5E Cable(Cat 5E) is a twisted pair cable for carrying signals. This type of cable is main used in structured cabling For computer networks such as Ethernet, supports a frequency range of up to 100MHz and is designed for transmission speeds of up to 1 gigabit per second(Gigabit Ethernet).
#Standard: ISO/IEC11801, TIA/EIA-568-B. 2
#Drawing
#Specification
*Conductor: Class 1 solid plain copper(24AWG)
*Insulation: HDPE(1.02+/-0.05mm)
*Screen 1: Mylar Tape
*Screen 2: AL Foil
*Drain Wire: Tinned Copper
*Jacket: PVC(0.5mm thickness)
*Overall Diameter: 6.0+/-0.2mm
*Nominal Weight: 13.5kgs/305m
#Electrical Characteristics
| Max. Conductor Resistance: 9.2Ω /100m | Min. Insulation Elongation: 300% | |||||||
| Max. Resistance Unbalance: 2.4% | Min. Propagation Velocity: 0.62C m/s | |||||||
| Min. Conductor Elongation: 20% | Characteristic Impedance: 100± 15Ω | |||||||
| Min. Insulation Resistance: 7000MΩ /km | ||||||||
|
Frequency MHz |
Attenuation dB/100m |
NEXT dB |
PS-NEXT dB |
RL dB |
ELFEXT dB |
PS-ELFEXT dB |
||
| 1 | 2.0 | 65.3 | 62.3 | 20.0 | 64.0 | 61.0 | ||
| 4 | 4.1 | 56.3 | 53.3 | 23.0 | 52.0 | 49.0 | ||
| 8 | 5.8 | 51.8 | 48.8 | 24.5 | 45.9 | 42.9 | ||
| 10 | 6.5 | 50.3 | 47.3 | 25.0 | 44.0 | 41.0 | ||
| 16 | 8.2 | 47.2 | 44.4 | 25.0 | 39.9 | 36.9 | ||
| 20 | 9.3 | 45.8 | 42.8 | 25.0 | 38.0 | 35.0 | ||
| 25 | 10.4 | 44.3 | 41.3 | 24.3 | 35.8 | 33.0 | ||
| 31.25 | 11.7 | 42.9 | 39.9 | 23.6 | 34.1 | 31.1 | ||
| 62.50 | 17.0 | 38.4 | 35.4 | 21.5 | 28.1 | 25.1 | ||
| 100 | 22.0 | 35.3 | 32.3 | 20.1 | 24.0 | 21.0 | ||
