Cat 5e 1000Ft UTP Outdoor Cable 24Awg
- Payment Type:
- L/C, T/T
- Incoterm:
- FOB
- Min. Order:
- 100 Pack/Packs
- Min. Order:
- 100 Pack/Packs
- Delivery Time:
- 25 Days
- Transportation:
- Ocean, Land, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen |
|---|---|
| Productivity: | 20 kilometer/ day |
| Payment Type: | L/C,T/T |
| Incoterm: | FOB |
| Certificate: | RoHs, ISO9001,CCC |
| Transportation: | Ocean,Land,Air |
Description

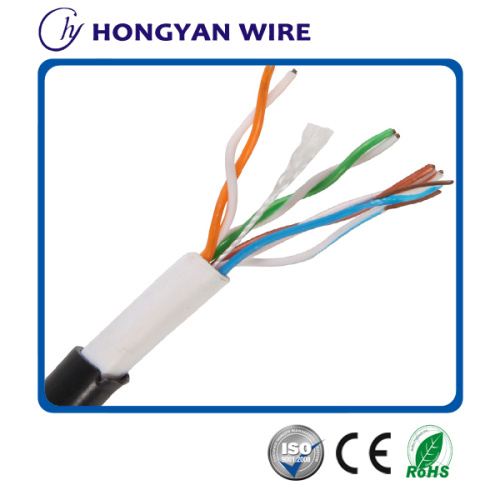

Cat5E UTP outdoor unshielded twisted pair, 24AWG Black 1000 ft cable in pull box.
This 24AWG Cat5e unshielded twisted pair (UTP) outdoor cable is a high performance data communication cable.
All 4 pairs are covered with Polyethylene. The inner PVC layer provides extra durability along with the PE film.
Standards
ISO/IEC11801
ANSI/EIA/TIA-568-B.2
Conductor
Class 1 solid plain copper
Insulation
HDPE(High Density Polyethylene)
Inner Jacket
PVC (Polyvinyl Chloride)
Outer Jacket
PE (Polyethylene)
Core Identification
Blue, White/Blue;
Orange, White/Orange
Green, White/Green
Brown, White/Brown
Construction
Specification
Conductor
Thick.
of Insulation
mm
Nominal
O.D.
mm
Nominal
Weight
Kgs/305m
box
24AWG
0.91±0.005
5.8±0.2
11
Electrical Characteristics
Max. Conductor Resistance: 9.2Ω/100m
Min. Insulation Elongation: 300%
Max. Resistance Unbalance: 2.4%
Min. Propagation Velocity: 0.62C m/s
Min. Conductor Elongation: 20%
Characteristic Impedance: 100±15Ω
Min. Insulation Resistance: 7000MΩ /km
Frequency
MHz
Attenuation
dB/100m
NEXT
dB
PS-NEXT
dB
RL
dB
ELFEXT
dB
PS-ELFEXT
dB
1
2.0
65.3
62.3
20.0
64.0
61.0
4
4.1
56.3
53.3
23.0
52.0
49.0
8
5.8
51.8
48.8
24.5
45.9
42.9
10
6.5
50.3
47.3
25.0
44.0
41.0
16
8.2
47.2
44.4
25.0
39.9
36.9
20
9.3
45.8
42.8
25.0
38.0
35.0
25
10.4
44.3
41.3
24.3
35.8
33.0
31.25
11.7
42.9
39.9
23.6
34.1
31.1
62.50
17.0
38.4
35.4
21.5
28.1
25.1
100
22.0
35.3
32.3
20.1
24.0
21.0
Packing
305M/Box (other packing is optional)
