Canned Cover Injection Moulds
- Payment Type:
- T/T
- Incoterm:
- FOB
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 70 Days
- Transportation:
- Ocean
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 2000K shots |
| Supply Ability: | 30 sets per month |
| Payment Type: | T/T |
| Incoterm: | FOB |
| Certificate: | ISO 9001:2008 |
| HS Code: | 8480719090 |
| Transportation: | Ocean |
| Port: | Shenzhen |
3K Mold meets the demand for affordable, durable plastic products that require precise specifications, each and every time. We are your one-stop source for quality, cost-competitive, domestically-produced molded plastic products using a variety of plastic materials.
ABS (Acrylanitrile Butadiene Styrene)
ABS + PC (ABS + Polycarbonate)
Acetal (POM)
Acrylic (PMMA)
LCP (Liquid Crystal Polymer)
PA-Nylon 6 (Polyamide)
PA-Nylon 6/6 (Polyamide)
PC (Polycarbonate)
PEI (Polyetherimide)
PE (Polyethylene)
LDPE (Low Density Polyethylene)
HDPE (High Density Polyethylene)
PET (Polyethylene Terepthalate)
PP (Polypropylene)
PPA (Polyphthalamide)
PPS (Polyphenylene Sulfide)
PS (Polystyrene)
PSU (Polysulfone)
PVC (Polyvinylchloride)
Project
Information
Product Description
Part Name

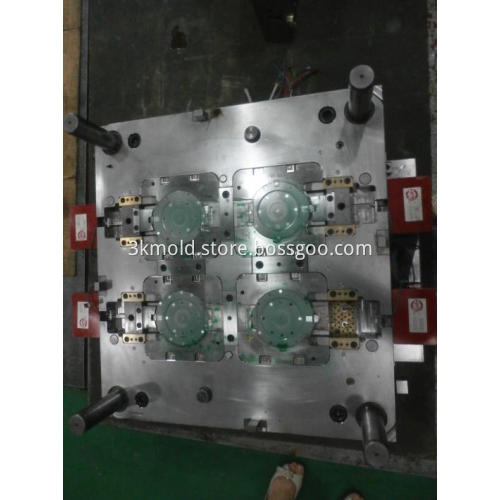

Canned Cover Injection Moulds
Part Material
PP
Part Size(mm)
122*117*15
Dia 131*23
Mould Description
Cavity Insert Material
Groditz 1.2343 HRC48-52
Core Insert Material
Groditz 1.2343 HRC48-52
Slider Insert Material
Groditz 1.2343 HRC48-53
Mould Cavities
4+4
Mold parts Standard
Hasco
Mold Size
750*700*1100mm
Mold weight
4250kG
Lead time
10 weeks
Mould Life Time (Shots)
2,000,000
Mould Type
Export to Germany
Runner Description
Guenter Hot runner system
Injection Gate Type
Valve gate to part
Ejection System
Ejector pin
Slide Qty.
8
Lifter Qty.
8
Cycle time
11 S
Surface finish
VDI 3400-27
Injection moulding machine
280T
High quality mold starts with a high quality design.
Before mold machining, Engineering will provide a DFM report to analysis potential issue such as injection gate type and position, Mold layout, Ejector pins layout, draft analysis, thickness analysis, part warpage, sink marks and surface finish etc. If necessary, We also provide the mold flow analysis report to analysis the filing, pressure, weld line, airtrap, deflection etc. To discuss with customer and determine the final mold concept. After providing the 3D/2D for final approval.
At 3K Mold Group, our design team consists of 15 skilled designers. They knew Hasco, DME and Custom standard etc Europe andAmericamold standard very well. Equipped with the latest hardware and software CAD, CAE,CAMto assist mold design and manufacturing. Rely on advanced equipment and 20 years experience in mold industry. 3K Mold Group has been built a diversified customer base from different industry.
