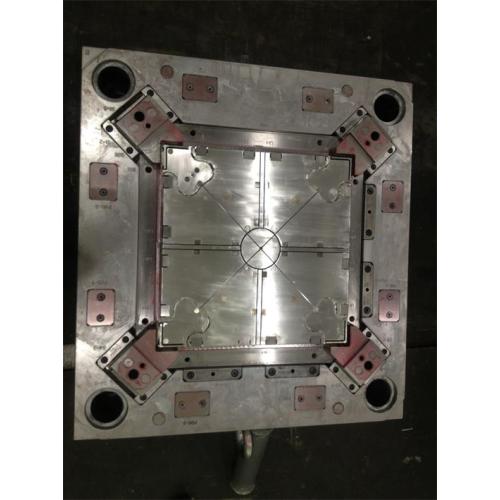

PVC Cover Injection Tooling
- Payment Type:
- T/T
- Incoterm:
- FOB
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 49 Days
- Transportation:
- Ocean
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 1000K shots |
| Supply Ability: | 30 sets per month |
| Payment Type: | T/T |
| Incoterm: | FOB |
| Certificate: | ISO 9001:2008 |
| HS Code: | 8480719090 |
| Transportation: | Ocean |
| Port: | Shenzhen |
3K Mold uses top quality, brand name components from suppliers such as Progressive, PCS, Parker, DME, Hasco etc. We use the highest grade steels from Diado, Assab, Groditz and Thyssen. Our hot runner systems are from Yudo, Husky, DME, Moldmaster, Synnventive, and Incoe. All the components are according to the request from customer. so maintenance, repair, or replacement parts can be obtained locally, and quickly.
Our customer service includes local support from our service point in Germany. We stand behind our work 100%, and have local tooling support locations in the Germany for warranty or revision work. We take pride in the integrity of our products and services.
| Project Information | ||
| Product Description | Part Name | PVC cover injection tooling |
| Part Material | PVC | |
| Part Size(mm) | 394X394X46mm | |
| Mould Description | Cavity Insert Material | 1. 2316H HRC30-32 |
| Core Insert Material | 1. 2316H HRC30-32 | |
| Slider Insert Material | 1. 2316H HRC30-32 | |
| Mould Cavities | 1 | |
| Mold parts Standard | Hasco | |
| Mold Size | 750*750*570mm | |
| Mold weight | 2326 KG | |
| Lead time | 7 weeks | |
| Mould Life Time (Shots) | 250,000 | |
| Mould Type | Export to Netherlands | |
| Runner Description | Cold runner | |
| Injection Gate Type | edge gate | |
| Ejection System | Ejector pin | |
| Slide Qty. | 8 | |
| Lifter Qty. | 0 | |
| Cycle time | 40S | |
| Surface finish | Technical smooth | |
| Injection moulding machine | 380T |
3K Mold is ISO-9001: 2008 certified. We use formal quality systems to manage the overall quality process and use precision measurement facilities by our well-trained team. All tooling and parts produced at our facility are constantly monitored by our Quality Assurance Department to meet your specifications.
Quality control Center
3K team committed to meet customer quality and delivery request. The main quality control process as following:
Incoming quality control (IQC)
In process quality control (IPQC)
Quality assurance (QA)
Quality management flow:
1. Mold base inspection
2. Steel inspection
3. Mold component inspection
4. Electrodes inspection
5. Mold checking before assembly
6. (FAI, CPK) First Article dimension report
7. Mold checking before delivery
