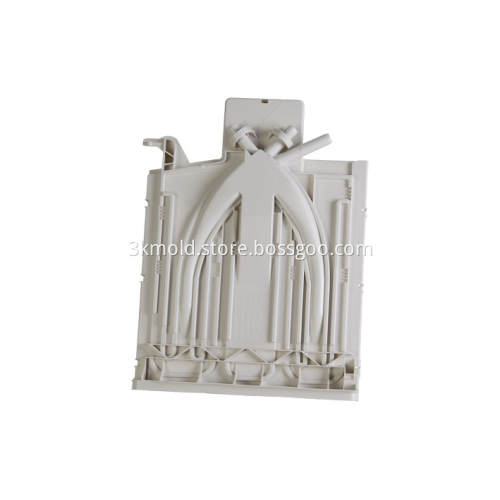

Washing Machine Top section Injection Mould
- Payment Type:
- T/T
- Incoterm:
- FOB
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 60 Days
- Transportation:
- Ocean
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 1000K shots |
| Supply Ability: | 30 sets per month |
| Payment Type: | T/T |
| Incoterm: | FOB |
| Certificate: | ISO 9001:2008 |
| HS Code: | 8480719090 |
| Transportation: | Ocean |
| Port: | Shenzhen |
It's glad to introduce our company to you; it is 3K Mold Co.,Limited, we are a medium but growing injection mould business. Hoping to expand overseas.
We are also interested to hook-up with any similar firms looking to maker in your region, our company produces wide of injection mould & molding, and we insist that all ingredients be good quality and low cost, if you know of any such like-minded companies we would very much appreciate hearing about it.
| Project Information | ||
| Product Description | Part Name | Washing Machine Top section Injection Mould |
| Part Material | SOFIL H50 C2 VNA | |
| Part Size(mm) | 276*210*49 | |
| Mould Description | Cavity Insert Material | 1.2343 ESR HRC50-52 |
| Core Insert Material | 1.2343 ESR HRC50-52 | |
| Slider Insert Material | 1.2343 ESR HRC50-52 | |
| Mould Cavities | 2+2 | |
| Mold parts Standard | Hasco | |
| Mould Life Time (Shots) | 1,000,000 | |
| Mould Type | Export to Germany | |
| Runner Description | Hot runner | |
| Injection Gate Type | Sub gate | |
| Ejection System | Ejector Pin | |
| Slide Qty. | 8 | |
| Lifter Qty. | 32 | |
| Injection moulding machine | 450T |
3K Mold is ISO-9001: 2008 certified. We use formal quality systems to manage the overall quality process and use precision measurement facilities by our well-trained team. All tooling and parts produced at our facility are constantly monitored by our Quality Assurance Department to meet your specifications.
Quality control Center
3K team committed to meet customer quality and delivery request. The main quality control process as following:
Incoming quality control (IQC)
In process quality control (IPQC)
Quality assurance (QA)
Quality management flow:
1. Mold base inspection
2. Steel inspection
3. Mold component inspection
4. Electrodes inspection
5. Mold checking before assembly
6. (FAI, CPK) First Article dimension report
7. Mold checking before delivery
