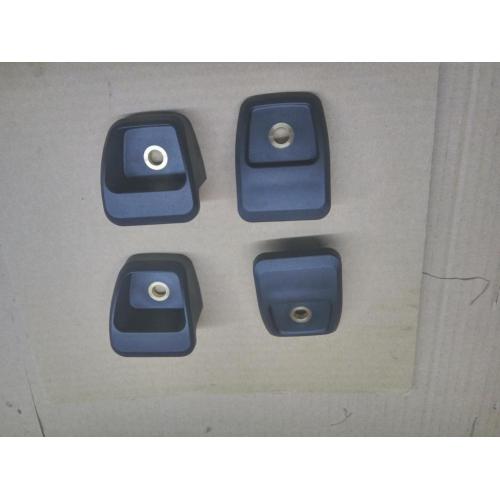

Plastic Injection Molding for Halter
- Payment Type:
- T/T
- Incoterm:
- FOB
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 30 Days
- Transportation:
- Ocean
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 1000K shots |
| Supply Ability: | 30 sets per month |
| Payment Type: | T/T |
| Incoterm: | FOB |
| Certificate: | ISO 9001:2008 |
| HS Code: | 8480719090 |
| Transportation: | Ocean |
| Port: | Shenzhen |
3K Mold has built its reputation and success on the ability to get their customers' products to market quickly and efficiently - without compromising mold design, part design, or quality.
In our Tool Shop you'll find a fully integrated tooling network comprised of mold designers and CNC programmers utilizing state-of-the-art software for our high speed CNC vertical machining centers complimented by our plunge and wire EDM Machines.
Materials:
At 3K Mold, we use an array of materials from aluminum, mild steel, hardened steels, stainless and copper beryllium to create prototypes, low volume, hybrid and production tooling
Mold Bases:
Injection mold types include: Double shot Injection Mould, Overmold,Gas assisted Injection Mould, Stack Injection Mould, Hot runner Injection Mould and multi-cavity format Mould.
SPI Classifications:
101, 102, 103, and 104.
Runner Systems:
Cold runner.
Hot drop and hot manifold systems with valve gate options.
| Project Information | ||
| Product Description | Part Name | Mobile Cover Injection Moulding |
| Part Material | PA6 GF35 | |
| Part Size(mm) | 67*51*25 | |
| Mould Description | Cavity Insert Material |
1.2767 HRC48-52 |
| Core Insert Material |
1.2767 HRC48-52 |
|
| Slider Insert Material |
1.2767 HRC48-52 |
|
| Mould Cavities | 2+2 | |
| Mold parts Standard | Hasco | |
| Mould Life Time (Shots) | 1000,000 | |
| Mould Type | Export to Germany | |
| Runner Description |
|
|
| Injection Gate Type | Cold runner sub gate | |
| Ejection System | Ejector Pin | |
| Slide Qty. | 8 | |
| Lifter Qty. | 0 | |
| Injection moulding machine | 160T |
High quality mold starts with a high quality design.
Before mold machining, Engineering will provide a DFM report to analysis potential issue such as injection gate type and position, Mold layout, Ejector pins layout, draft analysis, thickness analysis, part warpage, sink marks and surface finish etc. If necessary, We also provide the mold flow analysis report to analysis the filing, pressure, weld line, airtrap, deflection etc. To discuss with customer and determine the final mold concept. After providing the 3D/2D for final approval.
At 3K Mold Group, our design team consists of 15 skilled designers. They knew Hasco, DME and Custom standard etc Europe andAmericamold standard very well. Equipped with the latest hardware and software CAD, CAE,CAMto assist mold design and manufacturing. Rely on advanced equipment and 20 years experience in mold industry. 3K Mold Group has been built a diversified customer base from different industry.
