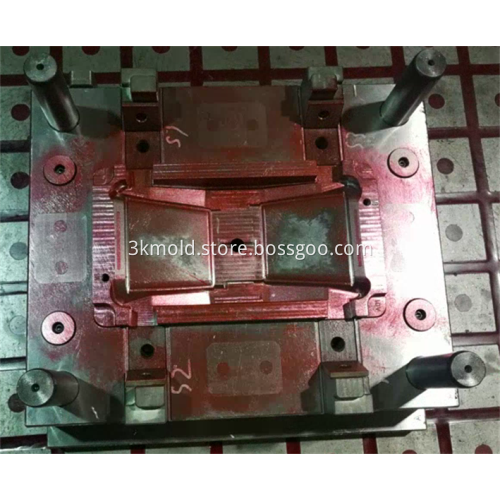

Cover Plate Injection Mould
- Payment Type:
- T/T
- Incoterm:
- FOB
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 35 Days
- Transportation:
- Ocean
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 200K shots |
| Supply Ability: | 30 sets per month |
| Payment Type: | T/T |
| Incoterm: | FOB |
| Certificate: | ISO 9001:2008 |
| HS Code: | 8480719090 |
| Transportation: | Ocean |
| Port: | Shenzhen |
3K Mold is a leader in metal to plastic conversion and can provide assistance in material selection, coordination with material vendors including compounders to develop a product that meets weight reduction, ergonomic, and cost-containment needs.
We have the capabilities to make injection molds from aluminum, P-20, hardened steel, or SPI class 105 to 101. Molds can have from 1 to 32 cavities.Our facility can fabricate molds that weigh up to 10 tonnes. Throughout the manufacturing process; all steps are verified using first article inspection, design validation, and process validation. We work to tightest tolerances of ±.0001".
Please search 3K Mold Co.,Limited on Google for more details. Thanks
| Project Information | ||
| Product Description | Part Name | Cover Plate Injection Mould |
| Part Material | SEBS 70Sh.A KRAIBURG TC7HFZ | |
| Part Size(mm) | 94*84*29 | |
| Mould Description | Cavity Insert Material | 1.2343(HRC48-52) |
| Core Insert Material | 1.2343(HRC48-52) | |
| Slider Insert Material | 1.2343(HRC48-52) | |
| Mould Cavities | 2 | |
| Mold parts Standard | LKM | |
| Mold Size | 500*300*340 | |
| Mold weight | 370 KG | |
| Lead time | 5 weeks | |
| Mould Life Time (Shots) | 200,000 | |
| Mould Type | Export to Italy | |
| Runner Description | Hot runner | |
| Injection Gate Type | edge gate | |
| Ejection System | Ejector pin | |
| Slide Qty. | 4 | |
| Lifter Qty. | 0 | |
| Injection moulding machine | 135T |
3K Mold is ISO-9001: 2008 certified. We use formal quality systems to manage the overall quality process and use precision measurement facilities by our well-trained team. All tooling and parts produced at our facility are constantly monitored by our Quality Assurance Department to meet your specifications.
Quality control Center
3K team committed to meet customer quality and delivery request. The main quality control process as following:
Incoming quality control (IQC)
In process quality control (IPQC)
Quality assurance (QA)
Quality management flow:
1. Mold base inspection
2. Steel inspection
3. Mold component inspection
4. Electrodes inspection
5. Mold checking before assembly
6. (FAI, CPK) First Article dimension report
7. Mold checking before delivery
