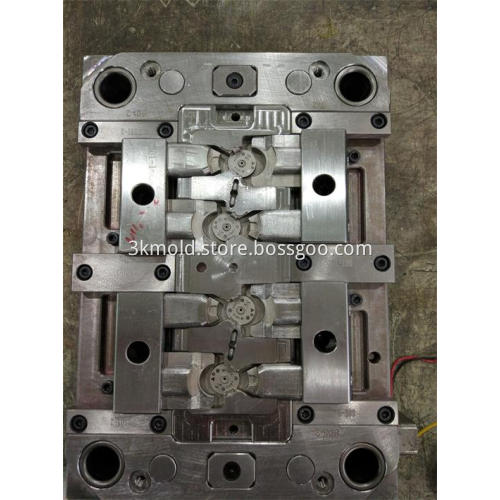

Electronic connector injection mould
- Payment Type:
- T/T
- Incoterm:
- FOB
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 42 Days
- Transportation:
- Ocean
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 1000K shots |
| Supply Ability: | 30 sets per month |
| Payment Type: | T/T |
| Incoterm: | FOB |
| Certificate: | ISO 9001:2008 |
| HS Code: | 8480719090 |
| Transportation: | Ocean |
| Port: | Shenzhen |
3K Mold is established in 1999. It is a high precision tooling and molding enterprise located in Shenzhen China, Has been more than 15 years experience in DME and Hasco standard. 2K and air assistant mold is our unquie technology. There are more than 400 molds export to America and Europea market per year.
Our services: Reverse Engineering , Part design, Mold design, Mold flow analysis, Mold making, Injection molding...
Molded parts: Automotive, Electronic, Medical,Home appliance industry...
Contact us today to get a new quote or shop tour.
| Project Information | ||
| Product Description | Part Name | Electronic connector injection mould |
| Part Material | PC/ABS | |
| Part Size(mm) | Ø25.33x40 | |
| Mould Description | Cavity Insert Material | S136 HRC48-52 |
| Core Insert Material | S136 HRC48-52 | |
| Slider Insert Material | 1.2343 HRC48-52 | |
| Mould Cavities | 4 | |
| Mold parts Standard | Hasco | |
| Mold Size | 250x350x280mm | |
| Mold weight | 210KG | |
| Lead time | 6 weeks | |
| Mould Life Time (Shots) | 1000K | |
| Mould Type | Export to Germany | |
| Runner Description | Cold runner | |
| Injection Gate Type | Sub gate | |
| Ejection System | Ejector pin | |
| Cycle time | 20s | |
| Slide Qty. | 4 | |
| Lifter Qty. | 0 | |
| Injection moulding machine | 160T |
3K Mold is ISO-9001: 2008 certified. We use formal quality systems to manage the overall quality process and use precision measurement facilities by our well-trained team. All tooling and parts produced at our facility are constantly monitored by our Quality Assurance Department to meet your specifications.
Quality control Center
3K team committed to meet customer quality and delivery request. The main quality control process as following:
Incoming quality control (IQC)
In process quality control (IPQC)
Quality assurance (QA)
Quality management flow:
1. Mold base inspection
2. Steel inspection
3. Mold component inspection
4. Electrodes inspection
5. Mold checking before assembly
6. (FAI, CPK) First Article dimension report
7. Mold checking before delivery
