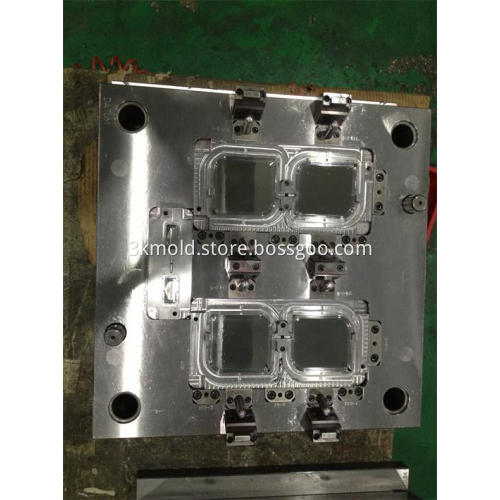

LED Housing Injection Tool
- Payment Type:
- T/T
- Incoterm:
- FOB
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 49 Days
- Transportation:
- Ocean
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 1000K shots |
| Supply Ability: | 30 sets per month |
| Payment Type: | T/T |
| Incoterm: | FOB |
| Certificate: | ISO 9001:2008 |
| HS Code: | 8480719090 |
| Transportation: | Ocean |
| Port: | Shenzhen |
From 3D-models to prototypes to the finished tool, our tool-making meets all requirements for complete in-house production, to better control the quality and saving delays.
Alongside the manufacturing of new tools, our toolmakers also maintain and repair tools currently being used, which guarantees high flexibility in ongoing processes.
With the aid of our long-term partners we can even respond to particular demands by our customers at any time.
| Project Information | ||
| Product Description | Part Name | LED Housing Injection Tool |
| Part Material | PS | |
| Part Size(mm) | 114x106x45mm | |
| Mould Description | Cavity Insert Material | ASSAB 1.2343 ESR HRC53 |
| Core Insert Material | ASSAB 1.2343 ESR HRC53 | |
| Mould Cavities | 2+2+2; | |
| Mold parts Standard | Hasco | |
| Mold Size | 900x400x580mm | |
| Mold weight | 1515kg | |
| Lead time | 7 weeks | |
| Mould Life Time (Shots) | 1,250,000 | |
| Mould Type | Export to Germany | |
| Runner Description | 2 Moldmasters hot runner | |
| Injection Gate Type | Hot runner turn cold runner sub gate | |
| Ejection System | Ejector pin | |
| Slide Qty. | 0 | |
| Lifter Qty. | 8 | |
| Surface finish | Mirror surface | |
| Injection moulding machine | Arburg 420 T |
3K Mold is ISO-9001: 2008 certified. We use formal quality systems to manage the overall quality process and use precision measurement facilities by our well-trained team. All tooling and parts produced at our facility are constantly monitored by our Quality Assurance Department to meet your specifications.
Quality control Center
3K team committed to meet customer quality and delivery request. The main quality control process as following:
Incoming quality control (IQC)
In process quality control (IPQC)
Quality assurance (QA)
Quality management flow:
1. Mold base inspection
2. Steel inspection
3. Mold component inspection
4. Electrodes inspection
5. Mold checking before assembly
6. (FAI, CPK) First Article dimension report
7. Mold checking before delivery
