LED Housing Moulds
- Payment Type:
- T/T
- Incoterm:
- FOB
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 49 Days
- Transportation:
- Ocean
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 1000K shots |
| Supply Ability: | 30 sets per month |
| Payment Type: | T/T |
| Incoterm: | FOB |
| Certificate: | ISO 9001:2008 |
| HS Code: | 8480719090 |
| Transportation: | Ocean |
| Port: | Shenzhen |
3K Mold can manage the whole procedure from concept of the very beginning to perfect completion. This means higher efficiency, lower cost, shorter lead-time and much better overall control of the operation. We will make detailed production planning and timing which are followed up strictly by project managers who are rich experienced in mould design, tooling manufacture, injection molding process management. Each project is separately charged by one Project manager. He also is in charge of all business and technical communication for this project with customer. We will keep customer updated about detail information of this project by weekly report and digital picture. It is easy for customer to manage the project at the same time. We will provide high standard of customer service by self-improvement. Just one phone call, or an e-mail, and you'll see we are ready for you at any time. We setup an efficient team to ensure that projects development transit smoothly from engineering to production or client.
| Project Information | ||

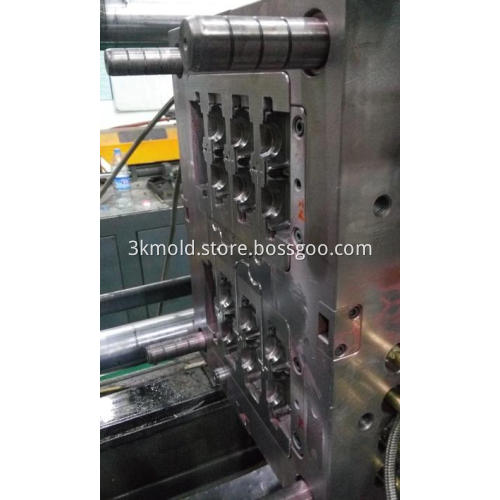

| Product Description | Part Name | LED Housing Moulds |
| Part Material | PS | |
| Part Size(mm) | 113X13X22mm, 113x14x22mm;114x106x45mm | |
| Mould Description | Cavity Insert Material | ASSAB 1.2343 ESR HRC53 |
| Core Insert Material | ASSAB 1.2343 ESR HRC53 | |
| Slider Insert Material | / | |
| Mould Cavities | 12;12; 2+2+2; | |
| Mold parts Standard | Hasco | |
| Mold Size | 550*550*480mm, 900x400x580mm(M160001/0002 share a mouldbase) | |
| Mold weight | 1053KG;1053kg,1515kg | |
| Lead time | 7 weeks | |
| Mould Life Time (Shots) | 1,250,000 | |
| Mould Type | Export to Germany | |
| Runner Description | 2 Moldmasters hot runner | |
| Injection Gate Type | Hot runner turn cold runner sub gate | |
| Ejection System | Ejector pin | |
| Slide Qty. | 0;0;0 | |
| Lifter Qty. | 0;0;8 | |
| Cycle time | / | |
| Surface finish | Mirror surface | |
| Injection moulding machine | Arburg 420 T |
3K Mold is ISO-9001: 2008 certified. We use formal quality systems to manage the overall quality process and use precision measurement facilities by our well-trained team. All tooling and parts produced at our facility are constantly monitored by our Quality Assurance Department to meet your specifications.
Quality control Center
3K team committed to meet customer quality and delivery request. The main quality control process as following:
Incoming quality control (IQC)
In process quality control (IPQC)
Quality assurance (QA)
Quality management flow:
1. Mold base inspection
2. Steel inspection
3. Mold component inspection
4. Electrodes inspection
5. Mold checking before assembly
6. (FAI, CPK) First Article dimension report
7. Mold checking before delivery
