High Temperature Mould
- Payment Type:
- T/T
- Incoterm:
- FOB
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 56 Days
- Transportation:
- Ocean
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 1000K shots |
| Supply Ability: | 30 sets per month |
| Payment Type: | T/T |
| Incoterm: | FOB |
| Certificate: | ISO 9001:2008 |
| HS Code: | 8480719090 |
| Transportation: | Ocean |
| Port: | Shenzhen |

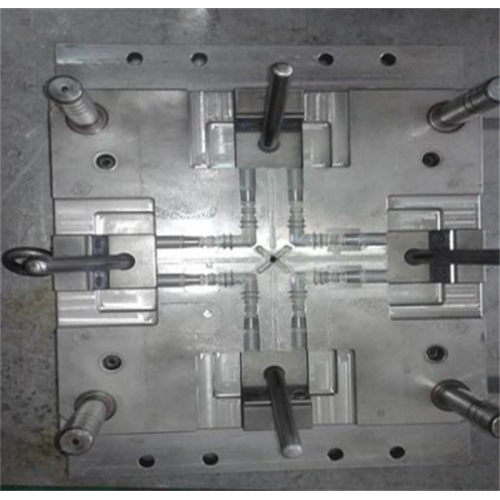

3K Mold Company specializes in contract plastics manufacturing, high precision tooling, insert molding, High Temperature Mould(PPS Injection Mould) and the assembly of plastic molded parts.
We have the substantial experience and skills required to manufacture your parts, using the latest technology and efficiency management for your projects. Moreover, we trust that our dedication to excellence in service, quality, and cost efficiency will enhance the success of your products and your business.
| Project Information | ||
| Product Description | Part Name | High Temperature Mould |
| Part Material | PPSU | |
| Part Size(mm) | 62.5x62.5x22mm | |
| Mould Description | Cavity Insert Material | 1.2343 HRC 52-54 |
| Core Insert Material | 1.2343 HRC 52-54 | |
| Slider Insert Material | 1.2343 HRC 52-54 | |
| Mould Cavities | 1X4 | |
| Mold parts Standard | Hasco | |
| Mold Size | 350x655x600mm | |
| Mold weight | 370kg | |
| Lead time | 8 weeks | |
| Mould Life Time (Shots) | 1000K | |
| Mould Type | Export to Germany | |
| Runner Description | Cold runner | |
| Injection Gate Type | Sub gate | |
| Ejection System | Ejector pin | |
| Cycle time | 60S | |
| Slide Qty. | 4 | |
| Lifter Qty. | 0 | |
| Injection moulding machine | 200T |
3K Mold is ISO-9001: 2008 certified. We use formal quality systems to manage the overall quality process and use precision measurement facilities by our well-trained team. All tooling and parts produced at our facility are constantly monitored by our Quality Assurance Department to meet your specifications.
Quality control Center
3K team committed to meet customer quality and delivery request. The main quality control process as following:
Incoming quality control (IQC)
In process quality control (IPQC)
Quality assurance (QA)
Quality management flow:
1. Mold base inspection
2. Steel inspection
3. Mold component inspection
4. Electrodes inspection
5. Mold checking before assembly
6. (FAI, CPK) First Article dimension report
7. Mold checking before delivery
