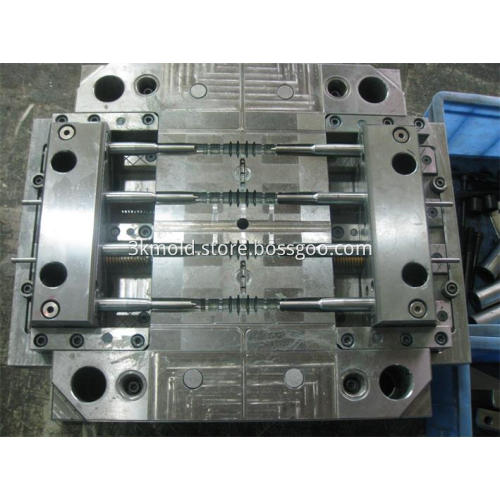

Connector Injection Mold
- Payment Type:
- T/T
- Incoterm:
- FOB
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 56 Days
- Transportation:
- Ocean
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 1000K shots |
| Supply Ability: | 30 sets per month |
| Payment Type: | T/T |
| Incoterm: | FOB |
| Certificate: | ISO 9001:2008 |
| HS Code: | 8480719090 |
| Transportation: | Ocean |
| Port: | Shenzhen |
3K Mold-We are solution people for plastic injection moulding, Our tool shop is equipped with the full range of machines that allow us to offer product and mold design, mold making, mold repair, engineering changes and preventative maintenance on plastic injection molds up to 8 tons. Being ISO 9001:2008 compliant throughout our plant ensures that we will deliver the tooling you need to keep your plastic molded parts ahead of schedule and within tolerance.
We invite you to contact us and join our family of satisfied customers today!
| Project Information | ||
| Product Description | Part Name | Connector Injection Mold |
| Part Material | PPSU | |
| Part Size(mm) | 74x18x18mm | |
| Mould Description | Cavity Insert Material | 1.2343 HRC 52-54 |
| Core Insert Material | 1.2343 HRC 52-54 | |
| Slider Insert Material | 1.2343 HRC 52-54 | |
| Mould Cavities | 1X4 | |
| Mold parts Standard | Hasco | |
| Mold Size | 456X530X460MM | |
| Mold weight | 410KG | |
| Lead time | 8 weeks | |
| Mould Life Time (Shots) | 1000K | |
| Mould Type | Export to Germany | |
| Runner Description | Moldmaster hot runner system | |
| Injection Gate Type | 2 nozzles to cold runner sub gate | |
| Ejection System | Ejector pin | |
| Cycle time | 60S | |
| Slide Qty. | 2 | |
| Lifter Qty. | 0 | |
| Injection moulding machine | 200T |
3K Mold is ISO-9001: 2008 certified. We use formal quality systems to manage the overall quality process and use precision measurement facilities by our well-trained team. All tooling and parts produced at our facility are constantly monitored by our Quality Assurance Department to meet your specifications.
Quality control Center
3K team committed to meet customer quality and delivery request. The main quality control process as following:
Incoming quality control (IQC)
In process quality control (IPQC)
Quality assurance (QA)
Quality management flow:
1. Mold base inspection
2. Steel inspection
3. Mold component inspection
4. Electrodes inspection
5. Mold checking before assembly
6. (FAI, CPK) First Article dimension report
7. Mold checking before delivery
