Safety Edge Inner And Outer Moulds
- Payment Type:
- T/T
- Incoterm:
- FOB
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 42 Days
- Transportation:
- Ocean
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 1000K shots |
| Supply Ability: | 30 sets per month |
| Payment Type: | T/T |
| Incoterm: | FOB |
| Certificate: | ISO 9001:2008 |
| HS Code: | 8480719090 |
| Transportation: | Ocean |
| Port: | Shenzhen |
3K Mold is proud that owns a strong design team with 15 know-how engineers, as the head of 3K Mold, Engineering Department strictlly carry out corportation principle in daily work.
Quality First: When there is anything interfere with quality, designers always consider quality first.
Customer-Oriented: Designers always listen to customer, fulfill customer request,make sure all standards are corrent to customer specification.
Valu-Added:How to design a mold wiht minimum troubles during its life time,is always a big discussion in Engineering Dep. And we always try to optimize the cooling system as good as we can, so customer can reach the minimum molding cycle time.
| Project Information | ||

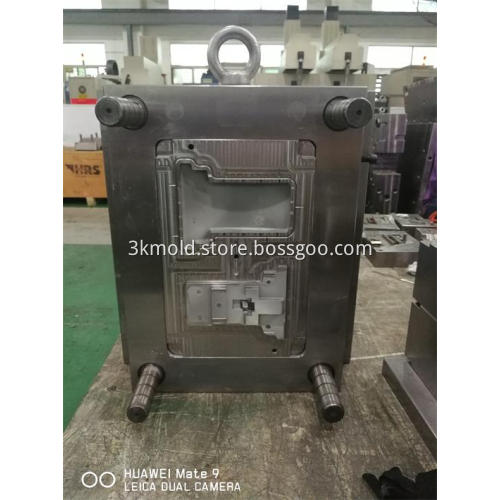

| Product Description | Part Name | Safety Edge Inner And Outer Moulds |
| Part Material | ABS | |
| Part Size(mm) | 147x117x25;147x117x27 | |
| Mould Description | Cavity Insert Material | 1.2343 HRC48-52 |
| Core Insert Material | 1.2343 HRC48-52 | |
| Slider Insert Material | 1.2343 HRC48-52 | |
| Mould Cavities | 1+1 | |
| Mold parts Standard | Hasco | |
| Mold Size | 600x400x400mm | |
| Mold weight | 696 KG | |
| Lead time | 6 weeks | |
| Mould Life Time (Shots) | 1,000,000 | |
| Mould Type | Export to Holland | |
| Runner Description | Cold runner | |
| Injection Gate Type | Sub gate | |
| Ejection System | Ejector pin | |
| Slide Qty. | 2 | |
| Lifter Qty. | 0 | |
| Injection moulding machine | 200T |
3K Mold is ISO-9001: 2008 certified. We use formal quality systems to manage the overall quality process and use precision measurement facilities by our well-trained team. All tooling and parts produced at our facility are constantly monitored by our Quality Assurance Department to meet your specifications.
Quality control Center
3K team committed to meet customer quality and delivery request. The main quality control process as following:
Incoming quality control (IQC)
In process quality control (IPQC)
Quality assurance (QA)
Quality management flow:
1. Mold base inspection
2. Steel inspection
3. Mold component inspection
4. Electrodes inspection
5. Mold checking before assembly
6. (FAI, CPK) First Article dimension report
7. Mold checking before delivery
