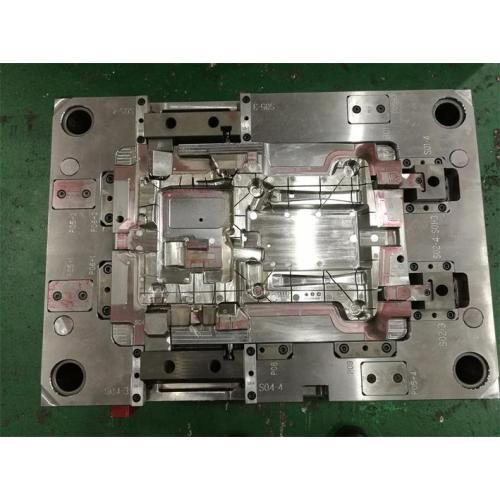

Car Luggage Cover Injection Mold
- Payment Type:
- T/T
- Incoterm:
- FOB
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 35 Days
- Transportation:
- Ocean
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 1000K shots |
| Supply Ability: | 30 sets per month |
| Payment Type: | T/T |
| Incoterm: | FOB |
| Certificate: | ISO 9001:2008 |
| HS Code: | 8480719090 |
| Transportation: | Ocean |
| Port: | Shenzhen |
High quality mold starts with a high quality design. Before mold machining, Engineering will provide a DFM report to analysis potential issue such as injection gate type and position, Mold layout, Ejector pins layout, draft analysis, thickness analysis, part warpage, sink marks and surface finish etc. If necessary, We also provide the mold flow analysis report to analysis the filing, pressure, weld line, airtrap, deflection etc. To discuss with customer and determine the final mold concept. After providing the 3D/2D for final approval.
At 3K Mold Group, our design team consists of 15 skilled designers. They knew Hasco, DME and Custom standard etc Europe andAmericamold standard very well. Equipped with the latest hardware and software CAD, CAE,CAMto assist mold design and manufacturing. Rely on advanced equipment and 20 years experience in mold industry. 3K Mold Group has been built a diversified customer base from different industry
| Project Information | ||
| Product Description | Part Name | Car Baggage Room Injection Tooling |
| Part Material | PA66+GF50 | |
| Part Size(mm) | 405X261X54MM | |
| Mould Description | Cavity Insert Material | 1.2343 HRC50-52 |
| Core Insert Material | 1.2343 HRC50-52 | |
| Slider Insert Material | ||
| Mould Cavities | 1 | |
| Mold parts Standard | Hasco | |
| Mold Size | 680x880x720mm | |
| Mold weight | 1136 KG | |
| Lead time | 5 weeks | |
| Mould Life Time (Shots) | 1,000,000 | |
| Mould Type | Export to Germany | |
| Runner Description | Incoe Hot runner | |
| Injection Gate Type | 1 nozzle directly to part | |
| Ejection System | Ejector pin | |
| Cycle time | 35S | |
| Slide Qty. | 6 | |
| Lifter Qty. | 0 | |
| Injection moulding machine | 300T |
3K Mold is ISO-9001: 2008 certified. We use formal quality systems to manage the overall quality process and use precision measurement facilities by our well-trained team. All tooling and parts produced at our facility are constantly monitored by our Quality Assurance Department to meet your specifications.
Quality control Center
3K team committed to meet customer quality and delivery request. The main quality control process as following:
Incoming quality control (IQC)
In process quality control (IPQC)
Quality assurance (QA)
Quality management flow:
1. Mold base inspection
2. Steel inspection
3. Mold component inspection
4. Electrodes inspection
5. Mold checking before assembly
6. (FAI, CPK) First Article dimension report
7. Mold checking before delivery
