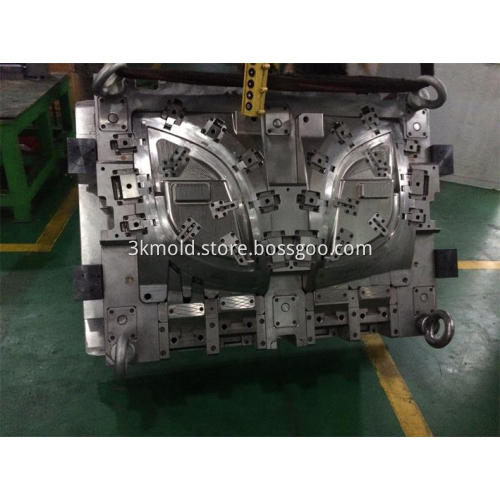

Automotive Door Bezel Tooling
- Payment Type:
- T/T
- Incoterm:
- FOB
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 49 Days
- Transportation:
- Ocean
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 1000K shots |
| Supply Ability: | 30 sets per month |
| Payment Type: | T/T |
| Incoterm: | FOB |
| Certificate: | ISO 9001:2008 |
| HS Code: | 8480719090 |
| Transportation: | Ocean |
| Port: | Shenzhen |
Mold manufacturing is where 3K Mold began – It remains one of our core competencies.
We specialize in high-tolerance, custom molds, from single cavity prototypes to large, multi-cavity production molds up to 8 tons. Whether you provide approved mold designs or you work with our experienced team to develop the tooling designs you require, 3K Mold will ensure the best mold is built for your intended application.
Using state-of-the-art mold design and building technologies, we offer mold manufacturing for the following types of tooling:
Injection
Compression
Thermoset
Two-Shot
Insert Molding
Die Cast Dies
Prototype
| Project Information | ||
| Product Description | Part Name | Automotive Door Bezel Tooling |
| Part Material | PC+ABS | |
| Part Size(mm) | 528.8x334.5x104 | |
| Mould Description | Cavity Insert Material | 2344 HRC 52-54 |
| Core Insert Material | 2344 HRC 52-54 | |
| Slider Insert Material | 2344 HRC 52-54 | |
| Mould Cavities | 1X2 | |
| Mold parts Standard | Hasco | |
| Mold Size | 1580x892x878mm | |
| Mold weight | 5970kg | |
| Lead time | 7 weeks | |
| Mould Life Time (Shots) | 1000K | |
| Mould Type | Export to Germany | |
| Runner Description | Synventive Hot runner | |
| Injection Gate Type | 4 Valve gates to cold runner | |
| Ejection System | Ejector pin | |
| Cycle time | 65s | |
| Slide Qty. | 20 | |
| Lifter Qty. | 0 | |
| Injection moulding machine | 700T |
3K Mold is ISO-9001: 2008 certified. We use formal quality systems to manage the overall quality process and use precision measurement facilities by our well-trained team. All tooling and parts produced at our facility are constantly monitored by our Quality Assurance Department to meet your specifications.
Quality control Center
3K team committed to meet customer quality and delivery request. The main quality control process as following:
Incoming quality control (IQC)
In process quality control (IPQC)
Quality assurance (QA)
Quality management flow:
1. Mold base inspection
2. Steel inspection
3. Mold component inspection
4. Electrodes inspection
5. Mold checking before assembly
6. (FAI, CPK) First Article dimension report
7. Mold checking before delivery
