Wheel Cover Injection Mould
- Payment Type:
- T/T
- Incoterm:
- FOB
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 60 Days
- Transportation:
- Ocean
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 1000K shots |
| Supply Ability: | 30 sets per month |
| Payment Type: | T/T |
| Incoterm: | FOB |
| Certificate: | ISO 9001:2008 |
| HS Code: | 8480719090 |
| Transportation: | Ocean |
| Port: | Shenzhen |
We are a professional moulds manufacturer in China.
We think you are interesting to our company when you indeed look for a nice mould supplier,as a moulding company focus on cost, quality and timing, that is also what we do for our customer, so I am happy to share our project management with you.
1, Each project, we focus on design at the first stage, because [A start to do right will make things more smoothly in the future".
2, Inspection at the material reception stage.
3, QC checking critical dimension before passing to next tooling step.
4, Inspection electrode dimension before EDM.
5, Passing a MIN 3 hours continuous run before shipment.
Please try to contact us for your new projects, thanks in advance.
| Project Information | ||

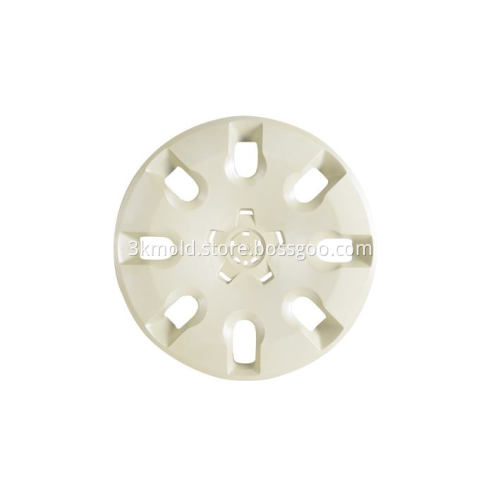

| Product Description | Part Name | Wheel Cover Injection Mould |
| Part Material | PA66+16%CM | |
| Part Size(mm) | 418.5*418.5*51.6 | |
| Mould Description | Cavity Insert Material | 1.2344 HRC50-52 |
| Core Insert Material | 1.2344 HRC50-52 | |
| Slider Insert Material | 1.2343 HRC48-52 | |
| Mould Cavities | 1 | |
| Mold parts Standard | Hasco | |
| Mould Life Time (Shots) | 1,000,000 | |
| Mould Type | Export to Germany | |
| Runner Description | Hot runner | |
| Injection Gate Type | 1 point gate | |
| Ejection System | Ejector Pin | |
| Slide Qty. | 8 | |
| Lifter Qty. | 0 | |
| Injection moulding machine | 400T |
3K Mold is ISO-9001: 2008 certified. We use formal quality systems to manage the overall quality process and use precision measurement facilities by our well-trained team. All tooling and parts produced at our facility are constantly monitored by our Quality Assurance Department to meet your specifications.
Quality control Center
3K team committed to meet customer quality and delivery request. The main quality control process as following:
Incoming quality control (IQC)
In process quality control (IPQC)
Quality assurance (QA)
Quality management flow:
1. Mold base inspection
2. Steel inspection
3. Mold component inspection
4. Electrodes inspection
5. Mold checking before assembly
6. (FAI, CPK) First Article dimension report
7. Mold checking before delivery
