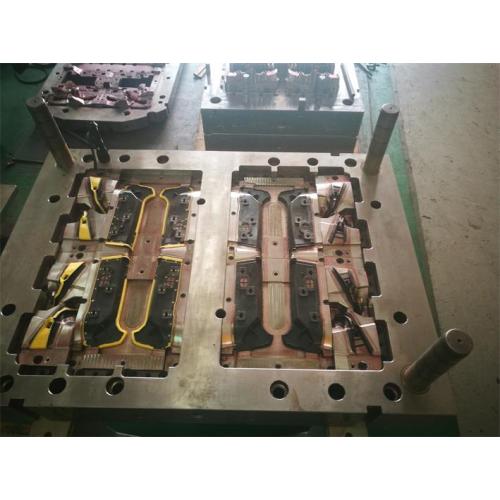

Automotive Fill 2K Molding
- Payment Type:
- T/T
- Incoterm:
- FOB
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 70 Days
- Transportation:
- Ocean
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 1000K shots |
| Supply Ability: | 30 sets per month |
| Payment Type: | T/T |
| Incoterm: | FOB |
| Certificate: | ISO 9001:2008 |
| HS Code: | 8480719090 |
| Transportation: | Ocean |
| Port: | Shenzhen |
3K Mold is a professional plastic injection mold manufacturer with rich experiences in China. We can offer Product Design, Full injection molding & Production services, product assembly at attractive price. We have accumulated more than 15 years` experience of mold making based on DME and HASCO standard for USA and European market.we are very familare with 2K Plastic Injection Mould making.
In particular, we are very good at 2k mold and high precision mold which covers Automotive, Electronics and Home appliance as well as Medical industry...
| Project Information | ||
| Product Description | Part Name | Automotive sealing 2K Molding |
| Part Material | PA66+EVA | |
| Part Size(mm) | 247*107*66;136*56*51 | |
| Mould Description | Cavity Insert Material | 1.2343 HRC50-52 |
| Core Insert Material | 1.2343 HRC50-52 | |
| Slider Insert Material |
|
|
| Mould Cavities | 2+2+2+2 | |
| Mold parts Standard | Hasco | |
| Mold Size | 1250X900X757mm | |
| Mold weight | 4337 KG | |
| Lead time | 10 weeks | |
| Mould Life Time (Shots) | 1,000,000 | |
| Mould Type | Export to France | |
| Runner Description | Yudo Hot runner | |
| Injection Gate Type |
PA part: 8 nozzles EVA Part: 12 nozzles |
|
| Ejection System | 2 cylinders for ejection | |
| Cycle time | 90 S | |
| Slide Qty. | 0 | |
| Lifter Qty. | 0 | |
| Injection moulding machine | 450T |
3K Mold is ISO-9001: 2008 certified. We use formal quality systems to manage the overall quality process and use precision measurement facilities by our well-trained team. All tooling and parts produced at our facility are constantly monitored by our Quality Assurance Department to meet your specifications.
Quality control Center
3K team committed to meet customer quality and delivery request. The main quality control process as following:
Incoming quality control (IQC)
In process quality control (IPQC)
Quality assurance (QA)
Quality management flow:
1. Mold base inspection
2. Steel inspection
3. Mold component inspection
4. Electrodes inspection
5. Mold checking before assembly
6. (FAI, CPK) First Article dimension report
7. Mold checking before delivery
