Automotive Two Shot Injection Mould
- Payment Type:
- T/T
- Incoterm:
- FOB
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 45 Days
- Transportation:
- Ocean
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 1000K shots |
| Supply Ability: | 30 sets per month |
| Payment Type: | T/T |
| Incoterm: | FOB |
| Certificate: | ISO 9001:2008 |
| HS Code: | 8480719090 |
| Transportation: | Ocean |
| Port: | Shenzhen |
Infomration updating in time, excellent cominucations, this was feedback from our customers, not what we say that. Could save time for you.
Provide solution for issue in no time, after approved by customer we start working immediately. Save time for you to let your products release on your marketing earlier.
We can make tight tolerance (0.02mm) mold, thin wall molds.
Our project manager can speak English directly with customer to discuss about any issues, It is not every company can provide this service.
| Project Information | ||

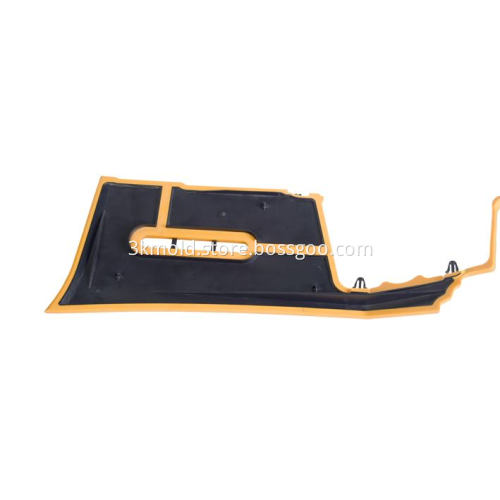

| Product Description | Part Name | Automotive 2K parts mould |
| Part Material | PA and Rubber | |
| Part Size(mm) | 363*164*23 | |
| Mould Description | Cavity Insert Material | 1.2343 HRC48-52 |
| Core Insert Material | 1.2343 HRC48-52 | |
| Slider Insert Material | 0 | |
| Mould Cavities | 1+1 | |
| Mold parts Standard | Hasco | |
| Mould Life Time (Shots) | 1,000,000 | |
| Mould Type | Export to France | |
| Runner Description | Hot runner | |
| Injection Gate Type | 4 points pin gate | |
| Ejection System | Ejector Pin | |
| Slide Qty. | 0 | |
| Lifter Qty. | 0 | |
| Injection moulding machine | 1000T |
3K Mold is ISO-9001: 2008 certified. We use formal quality systems to manage the overall quality process and use precision measurement facilities by our well-trained team. All tooling and parts produced at our facility are constantly monitored by our Quality Assurance Department to meet your specifications.
Quality control Center
3K team committed to meet customer quality and delivery request. The main quality control process as following:
Incoming quality control (IQC)
In process quality control (IPQC)
Quality assurance (QA)
Quality management flow:
1. Mold base inspection
2. Steel inspection
3. Mold component inspection
4. Electrodes inspection
5. Mold checking before assembly
6. (FAI, CPK) First Article dimension report
7. Mold checking before delivery
