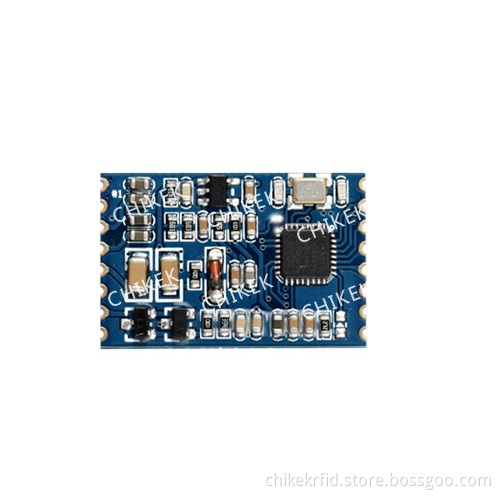

125KHz T5577 smart card Reader
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, CFR
- Min. Order:
- 1 Bag/Bags
- Min. Order:
- 1 Bag/Bags
- Delivery Time:
- 3 Days
- Transportation:
- express
- Port:
- SHENZHEN, HONGKONG
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | SHENZHEN CHINA |
|---|---|
| Productivity: | 10000pcs per month |
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,CFR |
| Transportation: | express |
| Port: | SHENZHEN,HONGKONG |
Key Features:
Frequency available with 125KHz
3.3V ~ 5V DC Power supply, UART-TTL interface
R/W or Read-only UID of T5577 and its compatible cards
Available to set to read different Page or Block address with password
Optional output as WG26, WG34 or UART TTL
External antenna, reading range up to 5~7cm
External LED&BUZ available( external driver circuit needed
Technical Parameters:
|
Electrical Specification |
|
|
Power supply |
DC 3.3V- 5V |
|
Power consumption |
45mA |
|
Operation frequency |
125KHz |
|
Baudrate |
9600~115200 bit/s ( default 9600bps) |
|
Interface |
UART TTL |
|
Antenna |
External,stamp-hole |
|
Reading range |
50- 70mm (depends on tag and antenna size) |
|
Mechanical Specifications |
|
|
Dimension |
25mmx16.5mmx2.8mm (LxWxH) |
|
Weight |
3g |
|
Material |
FR-4, Blue |
|
Model |
CHK102MT |
|
Supported Standard/ Tags |
|
|
|
T5567, T5577 and compatible cards |
|
SDK information |
|
|
Demo software |
Windows, C# program language |
|
Files |
Comprotocol document User Manual Demo.exe |
Note: Other functions and details to be continued and upgraded
