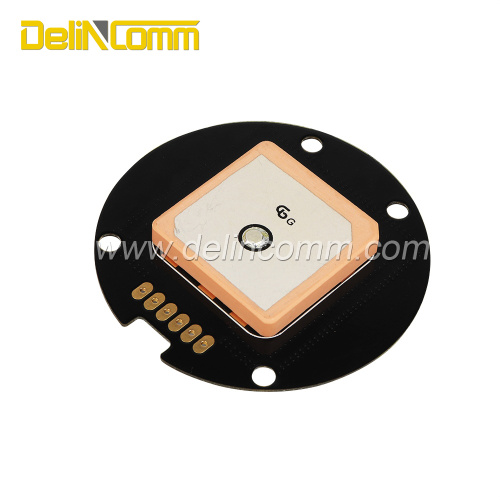

GNSS GMOUSE Module Antenna with UBX-M8030-KT chip

        The DL-50RN-GGCU module series is a family of stand alone GNSS receivers featuring the high performance u-blox M8 positioningengine. These flexible

and cost effective receivers offer numerous connectivity options in miniature 50mm(D)x9.56mm (H) package.Their compact architecture and power and

memory options make DL-50RN-GGCU modules ideal for battery operated mobile devices with very strict cost and space constraints.

        The module is equipped with a 6-pin 1.5mm distance Connector that connects to your application platform. The DL-50RN-GGCU module It consists of a

ublox M8 single chip GNSS IC which includes the RF part and Basebandpart, a patch antenna, a LNA, a SAW filter, a TCXO, a crystal oscillator, a SPI FLASH,

a Compass IC, Also comes with a 0.22F crystal capacitor ,can backup satellite ephemeris about 2 hour.

      Features

      Build on high performance, low-power u-blox UBX-M8030-KT chip set

      Ultra high sensitivity: -167dBm

      Extremely fast TTFF at low signal level

     Built in high gain LNA

      Built in SPI FLASH,Used to save configuration commands

      Built in electronic compass HMC5883L chip

      Low power consumption:Max50mA/3.3V

      NMEA-0183 compliant protocol or custom prot ocol

      Operating voltage: 3.3V--5.0V

      Operating temperature range:-40to85℃

      Patch Antenna Size: 25mmx25mmx4mm

      Small form factor: 50mm(D)x9.56mm(H)

     Communication type: UART/TTL

      RoHS compliant (Lead-free)

      Key Features

      Parameter                                                  Specification

      Receiver Type                                            Code 72 search channels ,22 synchronous tracking channels

                                                                           GPS&QZSS L1 1575.42MHz C/A , Beidou B1 1561.098MHz,

                                                                           GALILEO E1B/C¹, GLONASS L1OF 1602MHz,

                                                                           SBAS: WAAS, EGNOS, MSAS, GAGAN

      Horizontal Position                                   <2.5m CEP @-130 dBm
      Accuracy (Autonomous)
      Max Update Rate                                        Up to 10Hz,1Hz by fault
      Accuracy of 1PPS Signal                          not enabled
      Acceleration Accuracy                               Without aid: 0.1m/s²
      Dynamic Performance                              Maximum altitude: 18,000m
                                                                             Maximum velocity: 515m/s
                                                                             Acceleration: 4G
