GPS external tracking antenna high gain antenna

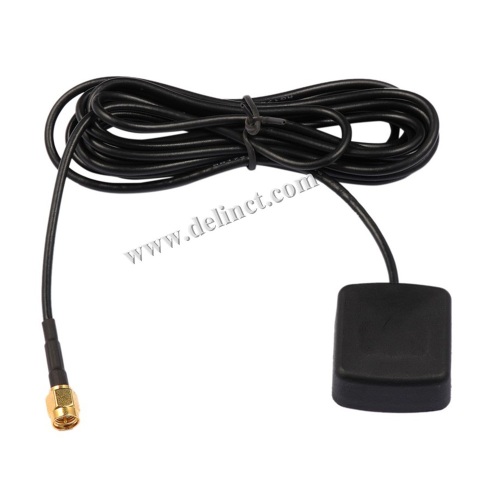

GPS External Antenna GPS Receiving Antenna with SMA 3 Meters. The function of GPS Receiving Antenna is transmitting electromagnetic energy from satellite radio signal into power that receiver electron device can ingest and use. Our GPS antenna consists of ceramic antenna and active amplifier. It uses plastic shell packaging and can prevent water and moisture. It is tiny size, and with magnet at the bottom of antenna. Easy to install.

Specifications

Range of Receiving Frequency(MHz): 1575.42±1.1

Center Frequency(MHz)(with 30mmSpuareGND plane) (30*30m㎡): 1575.42

(Retum Loss≤-10dB)Band Width(MHz): ≥10

V.S.W.R(in Center Frequency): ≤1.5

Gain (Zenith)(dBi typ)(with 70mmSquare GND plane): 3

Axial Ratio (with 70mm Square GND plan): 3.0dB

Polarization: Right-Handed Circular

Impedance(Ω): 50

Frequency Temperature Coefficient(ppm/℃): 0±10
