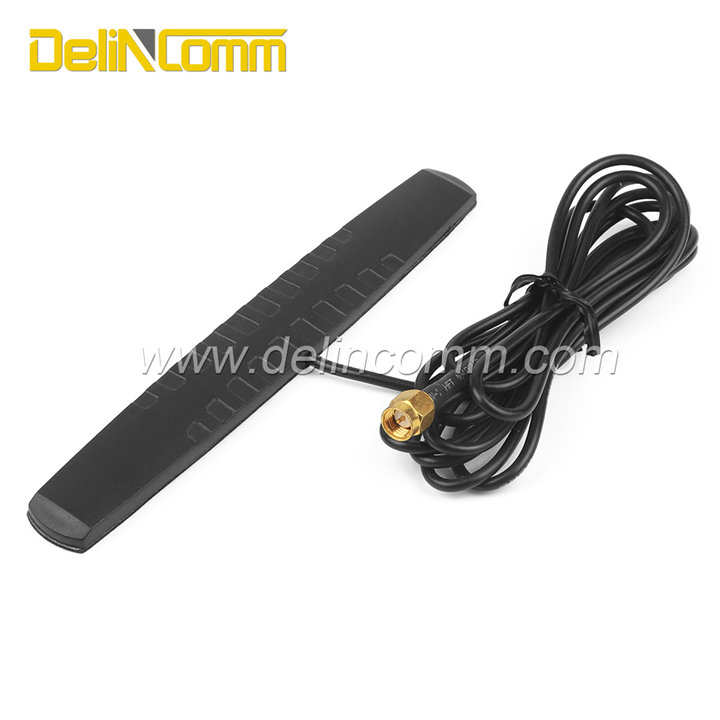

Black 3G Flat intermediate line Antenna with SMA

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB

Transportation:: Ocean, Air

Port:: Guangzhou

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	GUANGZHOU
Productivity:	100000/Day
Supply Ability:	100000/Day
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB
Certificate:	Ce, RoHS, FCC, ISO2000
Transportation:	Ocean,Air
Port:	Guangzhou

Product Description

Black 3G Flat intermediate line Antenna with SMA is for the 3G wireless terminal launched four frequency antenna products, and it has moisture, waterproof, anti vibration features.Suitable for national roaming, adhesion to glass and other non-metallic items used.

Antenna index as follow:

Frenquency range(MHz) 824~960 1710~2170
Directivity of antenna Quasi dipole
Gain (dB) ≤2
V.S.W.R ≤2.0
Standard imoedance(Ohm) 50
Antenna joint type SMA straight male head
Polarization linear polarization
Maximum Input Power 20
Antenna color Black
Antenna size(mm) 150*21*6
Cable type and length low-loss RG-174 line 3m
Weight ≥50g
SMA header characteristics
1 Materials and coatings
Part name Material Cladding material Remarks
inner conductor Brass wire gold-plating Hard gold
dielectric Teflon
hull Brass(HPb59-1) gold-plating Hard gold
2 Electrical performance
Test item Qualification
characteristic impedance 50Ω
temperature range -65~+165℃
frequency range 0~12GHZ
Dielectric Strength 1000V(rms)
contact resistance inner conductor ≤3mΩouter conductor ≤2mΩ
insulation resistance ≥5000MΩ
V.S.W.R ≤1.25(soft cable)
salt spray test(hour) 24
3 Mechanical properties
Mechanical properties Qualification
Mechanical endurance ≥500 times
3G Flat intermediate line Antenna
