High Quality Digital TV Antenna with T-type

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB

Transportation:: Ocean, Air

Port:: Guangzhou

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	guangzhou
Productivity:	100000/Day
Supply Ability:	100000/Day
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB
Certificate:	Ce, RoHS, FCC, ISO2000
HS Code:	8529109090
Transportation:	Ocean,Air
Port:	Guangzhou

Product Description

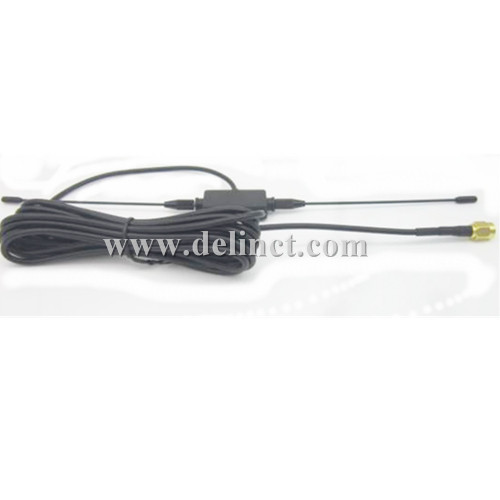

High Quality Digital TV Antenna with T-type

This digital TV antenna is a high gain transmitting and receiving antenna which is specially set up for digital TV. This antenna has many good characteristics, like : Beautiful Appearance, Convenient Installation, Wide Frequency Range, Good Performance, Stable Receiving, Salt Fog Resistance, Corrosion Resistance and Anti-jamming. They all should be checked by the import network analyzer before they are out of factory. And there also has stick paper at the bottom of the antenna, so they can be attached to different items.

Specifications

Antenna Characteristics

NO Item Specifications

1 Range of Receiving Frequency(MHz) 470-862

2 Band Width(MHz) 392

3 V.S.W.R(in Center Frequency) ≤1.5

4 Gain (Zenith)(dBi typ) 2

5 Poling Linear

6 Impedance(Ω) 50

7 Operation Temperature -40ºC~+85ºC

8 Storage Temperature -45ºC~+85ºC

Mechanical Index
Size	205X22mm	Mounting	Sticking
Weight	50 gram	Connector	SMA Gold Plated straight head
Color	Black	Cable	RG174 3m
