T-type Digital TV Antenna with SMA Connector

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB

Transportation:: Ocean, Air

Port:: Guangzhou

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	guangzhou
Productivity:	100000/Day
Supply Ability:	100000/Day
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB
Certificate:	Ce, RoHS, FCC, ISO2000
HS Code:	8529109090
Transportation:	Ocean,Air
Port:	Guangzhou

Product Description

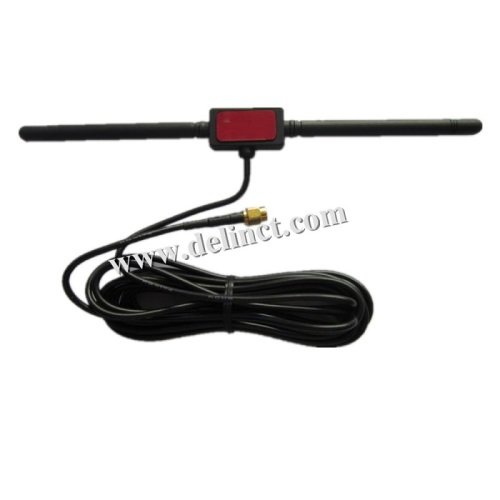

T-type Digital TV Antenna with SMA Connector

This digital TV antenna is a high gain transmitting and receiving antenna which is specially set up for digital TV. This tv antenna has many good characteristics, like : Beautiful Appearance, Convenient Installation, Wide Frequency Range, Good Performance, Stable Receiving, Salt Fog Resistance, Corrosion Resistance and Anti-jamming. They all should be checked by the import network analyzer before they are out of factory. And there also has stick paper at the bottom of the antenna, so they can be attached to different items.

Specifications

Antenna Characteristics

1 Range of Receiving Frequency(MHz)                                          470-862

2 Band Width(MHz)                                                                        392

3 V.S.W.R(in Center Frequency)                                                    ≤1.5

4 Gain (Zenith)(dBi typ)                                                                  2

5 Poling                                                                                Linear

6 Impedance(Ω)                                                                             50

7 Operation Temperature                                                              -40ºC~+85ºC

8 Storage Temperature                                                       -45ºC~+85ºC

Mechanical Index

Size

205X22mm

Mounting

Sticking

Weight

50 gram

Connector

SMA Gold Plated straight head

Color

Black

Cable

RG174 3m
