Square carbon fiber tube with 150mm large diameter

Square carbon fiber tube with 150mm large diameter

Carbon tube/pipe features:

1.Introduction
These 3K Octagonal Carbon Fiber Tube are made of pure carbon fiber with beautiful twill or plain weave;
Available in different colors and sizes( usually 3K twill matte);
Customized Round carbon fiber tubes specs are accepted,like Outer Diameter :6mm,8mm,10mm,12mm,14mm,16mm20mm,22mm,25mm,30mm......350mm;

Customized Shaped full carbon fiber tube: such as: 20X30mm, 30X30mm or others.
Thickness:
1.0mm, 1.5mm, 2.0mm or other thickness.

Length:

Recently we upgrade our machines to improve the carbon fiber tube precision.

Most precise tolerance shaped carbon fiber tubes for us.

2.Specifications

1) High temperature resistance carbon fiber tubes :100%carbon fiber ;

2) Light & high strength;

3) Good corrosion resistance;

3.other tube

1)Carbon Mixed Glass Tube

2)Black G10 Tubes

3)Glass Fiber Tube

The application of carbon fiber tubes started from replacing traditional metal tubes. Therefore, the carbon fiber tube must be able to have the strength and rigidity of the traditional metal tube. The strength of high-strength carbon fiber can reach more than 3000MPa, which is 6-12 times that of steel. The strength of ordinary carbon fiber is also far ahead of traditional metal materials. Therefore, the performance of carbon fiber pipes in terms of strength performance is not disappointing.

Even so, it does not mean that carbon fiber pipes can completely replace metal pipes. It must be analyzed from the specific requirements of the actual application objects. For example, mechanical roller shafts have higher requirements for dynamic balance index. As the revolving body part of the entire machine, carbon fiber tubes are part of the roller shaft. If there is a little defect in its quality or deviation in the process of processing and assembly, it will The centrifugal force and inertia are difficult to offset, causing vibration and noise; accelerating bearing wear and shortening the service life of the equipment.

Therefore, strength is only one of the obvious indicators of carbon fiber tube performance, and more indicators such as dynamic balance and verticality are the decisive factors for carbon fiber tube performance. At present, most companies on the market can provide carbon fiber tubes with sufficient strength. As for the actual use value of carbon fiber tubes, it is still subject to further discussion. Hobby carbon can customize carbon fiber tubes and other carbon fiber products according to customer needs, and all products will undergo A series of simulation tests can be shipped after passing the test.

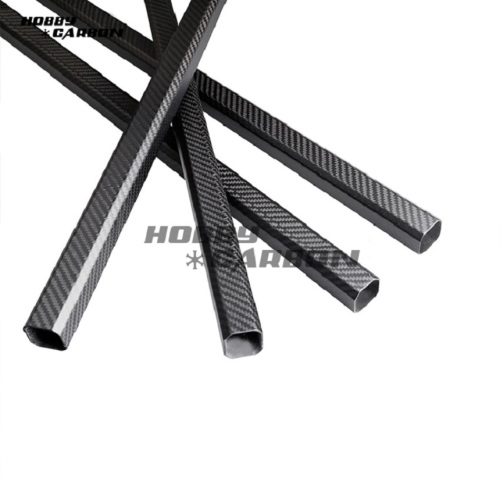

Product picture
