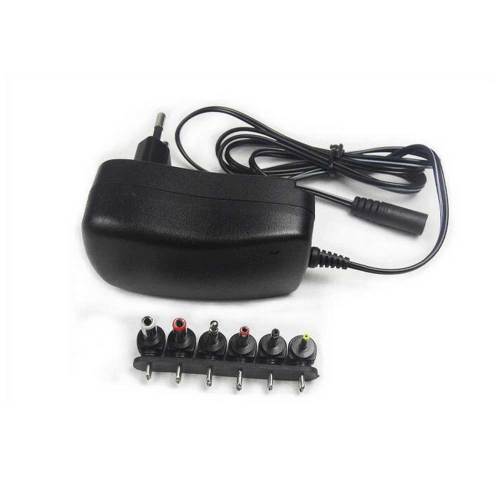

24W Manual Adjustable Voltage AC/DC Adapter

24W Manual Adjustable Voltage AC/DC Adapter The choosing plugs are very popular used in daily life, meet your power needs for lots of small digital devices at home. With these plugs and different voltage output, you can save a lot of buying different voltage ac adapters . Multi Voltage 24W replacement power adapter for many kinds of small household electronics, like Router, Speaker, CCTV camera system, LED strips and other compatible devices. We especially add a micro USB plug, it will give much convenience for powering most smart phones and tablets.

Specifications:

Efficiency: >80% (TYP)

Input voltage: AC100V-240V

Input current: 1.0A

Output voltage: DC 3V/4.5V/5V/6V/7.5V/9V/12V

Output current: 300mA/600mA/1000mA/1500mA/2000mA

Dimension: 75(L) x 43(W) x 35(H) Unit: mm

Cable: 1.50 M

Color: Black

LED indicator

Instruction:

Before plugging adapter into mains socket, please follow the step-by-step instructions.

1. VOLTAGE: Set voltage selector switch in accordance with the voltage requirement of      your electronic unit.

2. MILLIAMP(mA): Verify the mA requirement of the unit and determine if it can be used with a 1500mA Adapter.

3. POLARITY: Determine the polarity (+ or -) of the unit. The polarity can be found on the unit or in the user manual.

4. OUTPUT PLUG: Select a proper adapter plug and plug in into the DC input jack on unit.

5. PLUG IN: Plug the adapter into 100-240V electronic unit.

6. Note: If unit does not operate properly, check the polarity setting IMMEDIATELY.

Different plugs for you choose:

Warning:

Please read the description thoroughly and check the adaptor is compatible with your device, we are not responsible for customers who buy an incompatible adaptor or use unsuitable attachment tip as this can burn out the adaptor or damage your product through misuse.

You must check carefully the technical specifications of your device when choosing the correct model of the  adaptor you require (please refer the manufactures instructions or rating label on the product).

If you're replacing an existing power adaptor choose the adaptor matched as closely as possible to the original adaptor's voltage and current specifications.
