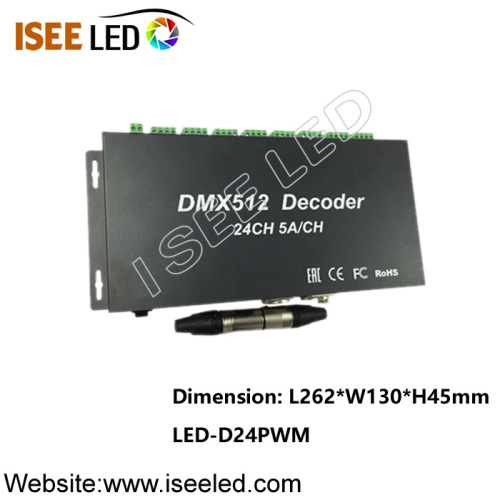

DC12-24V 24CH PWM DMX LED Decoder

DC12-24V 24CH PWM DMX LED Decoder

Model No. : LED-D24PWM

1.The PWM DMX LED Decoder is 24CH for the led strip or led lighting project

2.The DC12-24V PWM DMX LED Decoder have 8 pixels for your RGB LED Lighting, 6 pixels for RGBW led lighting

3.The 24CH PWM DMX LED Decoder is DC12-24V wide working voltage for you

4.The addresses of  PWM DMX LED Decoder are set by the RED DIP SWITCH

Application: adapted for all kinds of led lighting control by PWM DMX protocol

PWM DMX LED Decoder Description

1, 3ch, 4ch, 6ch, 24ch DMX to PWM decoder.

2, DMX to SPI decoder.

3, Set dmx512 address by DIP switch.

4, XLR connector or RJ45 connector.

5, Each 20pcs dmx decoder need a dmx amplifier for the PWM decoder .

6, Protections: short circuit, over current , over temperature.

 Parameters

Diagram

Photo Show

Packing and Shipping
