Outdoor P16 LED Grid Screen
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Delivery Time:
- 20 Days
- Transportation:
- Ocean, Air, Express
- Port:
- Shenzhen, Hongkong, Guangzhou
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| HS Code: | 9405409000 |
| Transportation: | Ocean,Air,Express |
| Port: | Shenzhen,Hongkong,Guangzhou |

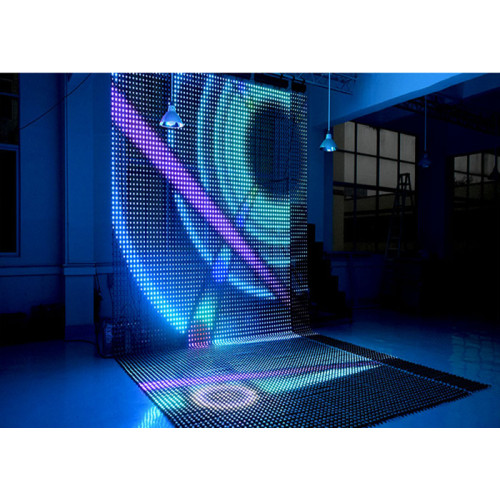

P31.25 Outdoor Transparency LED Grid Display
Model No
|
Product Model |
LED-GD-SMD-P16 |
LED-GD-DIP-P31.25 |
Descrition
Fast installation without pre-installation steel structure
Electricity save, the led bar display P16 and P31.25 good structure design and excellent heat dispel, no need air conditioner
DMX 512 control for stage or entertainment led display installation, and also support SPI control for outdoor architecture led display.
4.7kg/m2 for P31.25 and 13kg/m2 for P16, the led bar display is light weight to save the cost for transportation and installation.
Above 50% transparency and above Ip65 waterproof structure which is good for indoor and outdoor led display installation.
Convenient maintenance which you can choose the led bar display front-maintenance or behind-maintenance.
Parameters
|
Product Name |
P16 LED Grid Display |
P31.25 LED Grid Display |
|
Product Model |
LED-GD-SMD-P16 |
LED-GD-DIP-P31.25 |
|
Pixel Spacing |
16mm x 16mm |
31.25mm x 31.25mm |
|
Pixel Density |
3906 pixel/m² |
1024 pixel/m² |
|
LED Configuration |
SMD 3535 3 in 1 |
2R 2G 2B |
|
Cabinet Resolution |
16×64 |
21×48 |
|
Brightness |
≥5500 lm/m2 |
≥9000 lm/m2 |
|
Transparency |
>50% |
≥56% |
|
Cabinet Size |
W256×H1024×D88mm |
W656×H1500×D90mm |
|
Cabinet Weight |
4.7kg/unit, 18KG/m2 |
12.5kg/unit, 12.5kg/m2 |
|
Maximum Power Consumption |
840 W/m² |
300 W/m² |
|
Visual Angle |
H120° / W120° |
H110° / W60° |
|
Protection |
IP66 |
IP65 |
|
Gray Level |
16bit |
16bit |
|
Refresh Rate |
＞11520Hz |
＞4000Hz |
|
Working Voltage |
AC100V~240V |
DC36V |
|
Control Mode |
Computer online or SD Card |
Computer online or SD Card |
|
Service Life |
≥50000 Hours |
≥50000 Hours |
|
Working Temperature/Humidity |
-20℃~45℃, 10~90% RH |
-20℃~45℃, 10~90% RH |
|
Storage Temperature/Humidity |
-40℃~60℃, 10~90% RH |
-40℃~60℃, 10~90% RH |
Photos
ISEELED Service
1, Fast response.
2, Professional pre-sales consulting.
3, Good after-sales service.
4, ODM/OEM.
5, Fast lead time, most orders can be finished in two weeks.
FAQ
Q: How can I order from you?
A: 1, Please contact sales to issue pro-forma (PI).
2, After receiving your 50% or 100% deposit, we'll arrange production.
3, We'll inform you before production is finished.
4, Please arrange balance payment.
5, After receiving your balance payment, we'll arrange shipping, and let you know tracking NO.
Q: Is there a minimum order value?
A: Some items have MOQ, please contact sales.
