DMX 3D Tube RGB LED Bi-Pixel Control
Model NO. : LED-3DT30DMX3208
DMX 3D RGB Tube double sided effects for 360° viewing angles. Full dimming capability 0%-100%, Every 4 LEDs is one RGB Pixel,
RGB LED Pixel 3D Tube works with any type of DMX512 control, colorful and vivid effects can easily be achieved, If set up in group,
great 3D effects can be achieved, high quality clear plastic casing for optimum optics.
Pixel Control 3D Tubes are manually addressed using an external addressing device (LED-DW100-3XLRF). The initial DMX signal is
adquired by connecting one initial T cable, which provides the main DMX signal input as well as the main 15V DC power input.
It is always best to power each 10 tubes line that you may have created using the vert tubes from both sides of the line using 2 power supplies (15V 320W each),
this will decrease voltage drop and keep everything evenly lit.
Specifications:
Model NO.
LED-3DT30DMX3208
LED-3DT30DMX6416
LED-3DT30DMX9624
LED-3DT30DMX12832
Diameter
30mm
30mm
30mm
30mm
Length
500mm
1000mm
1500mm
2000mm
Color
■■■ RGB full color
■■■ RGB full color
■■■ RGB full color
■■■ RGB full color
LED QTY
32LEDs
64LEDs
96LEDs
128LEDs
Pixel QTY
8 Pixels
16 Pixels
24 Pixels
32 Pixels
Tube Qty/Universe
20 Tubes
10 Tubes
7 Tubes
5 Tubes
Voltage
DC15V or DC24V
DC15V or DC24V
DC15V or DC24V
DC15V or DC24V
Power
MAX=8W
MAX=16W
MAX=24W
MAX=32W
Protocol
DMX512
DMX512
DMX512
DMX512
Address Setting
Manually
Manually
Manually
Manually
Protection
IP65
IP65
IP65
IP65
Note
1, Diameter: 15mm, 30mm, 50mm
2, Length: 0.5m, 1m, 1.5m, 2m
3, Voltage: 12V, 15V, 24V
DMX 3D Tube RGB LED Bi-Pixel Control Connection guide:

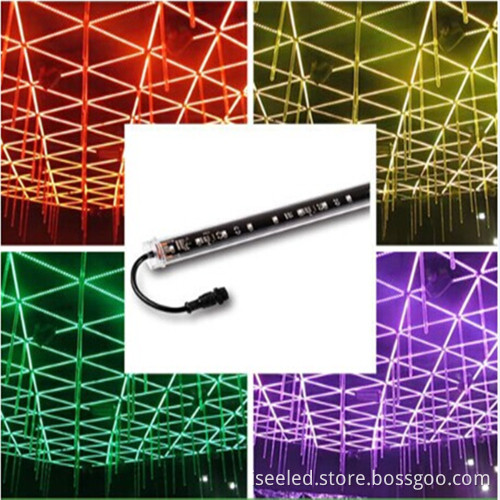

Photo show of DMX 3D Tube RGB LED Bi-Pixel Control :
Packaging & Shipping of DMX 3D Tube RGB LED Bi-Pixel Control :
Packaging Details:
0.5m Tube: 100pcs/ctn, Carton Size: 62*39*37cm
1m Tube: 100 pcs/ctn, Carton Size: 114*39*37cm
1.5m Tube: 100 pcs/ctn, carton packing with wooden case: 162*39*37cm.
