Eneloop 12v Rechargeable Battery
- Payment Type:
- L/C, T/T, D/P
- Incoterm:
- FOB, CFR, CIF
- Min. Order:
- 100 Piece/Pieces
- Min. Order:
- 100 Piece/Pieces
- Delivery Time:
- 30 Days
- Transportation:
- Ocean, Land
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | china |
|---|---|
| Productivity: | 2000, 000kvah/ Year |
| Supply Ability: | 2000, 000kvah/ Year |
| Payment Type: | L/C,T/T,D/P |
| Incoterm: | FOB,CFR,CIF |
| Certificate: | iso,UL,CE |
| Transportation: | Ocean,Land |

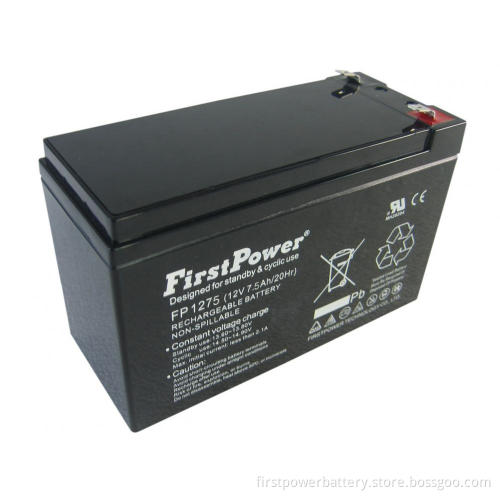

FP1275HR is a typical high rate discharge battery special designed for all kinds of high-power-ouput using application,
It is a non-spillable and sealed and Maintenance-free operation battery, with high quality and high reliability, good deep discharge recovery, low self-discharge ,etc. The battery apply solid copper terminals,tank-formed plates computer-aided design and manufacturing
Main features as follow:
* Standby use.
* High rate discharge construction.
* ISO9001, 14001, OHSMS 18001 certified.* UL, CE, VdS Approved. UL recognized components under UL 1989 (file number MH28204 ).
*With isolated seal, it can be put in horizontal way, vertical way and side way, its safety and functions totally will not be affected.Eneloop 9v Rechargeable Battery
* With special formula to manufacture lead calcium alloy as well as automatic progresses, gassing will be less.
* Long life, low self-discharge rate and high reliability.
* It has safety, low resistance so recharge is easy and energy output is more remarkable.
* Container material could be frame retardant ABS or PP with ranking UL 94V-0 by model.
* When it is used in safe surroundings, the battery is maintenance free, adding water is unnecessary and it can be recharged repeatedly.
* Batteries are strictly tested by computer charge/discharge system.
* Complies with IATA/ICAO Special Provision A67 for air transport.
* Classified per MG Amendment 27 as a non-hazardous material for water transport.
* Recognized by DOT as "Dry charge" 49 CFR 171-189 for surface transport.
Specifications
|
Nominal Voltage |
12 V |
||
|
Number of cell |
6 cells |
||
|
Capacity(20HR, 25℃) |
7.5Ah |
||
|
Capacity(15min.rate, 25℃) |
32 Watts/cell |
||
|
Dimension |
Length |
151±1.5mm (5.94inch) |
|
|
Width |
65±1mm (2.56inch) |
||
|
Height |
94±1mm (3.70inch) |
||
|
Total Height |
100±1mm (3.94inch) |
||
|
Approx. Weight |
2.48kg (5.47lbs)±5% |
||
|
Terminal type |
T1/T2 |
||
|
Internal resistance (Fully charged, 25℃) |
Approx. 20mΩ |
||
|
Capacity affected by temperature (20HR) |
40℃ |
102% |
|
|
25℃ |
100% |
||
|
0℃ |
85% |
||
|
-15℃ |
65% |
||
|
Self-discharge (25℃) |
3 month |
Remaining Capacity: 91% |
|
|
6 month |
Remaining Capacity: 82% |
||
|
12 month |
Remaining Capacity: 65% |
||
|
Nominal operating temperature |
25℃±3℃(77℉±5℉) |
||
|
Operating temperature range |
Discharge |
-15℃~50℃(5℉~122℉) |
|
|
Charge |
-10℃~50℃(14℉~122℉) |
||
|
Storage |
-20℃~50℃(-4℉~122℉) |
||
|
Float charging voltage(25℃) |
13.60 to 13.80V Temperature compensation: -18mV/℃ |
||
|
Cyclic charging voltage(25℃) |
14.50 to 14.90V Temperature compensation: -30mV/℃ |
||
|
Maximum charging current |
2.25A |
||
|
Terminal material |
Copper |
||
|
Maximum discharge current |
112.5A(5 sec.) |
||
|
Designed floating life(20℃) |
3~5 years |
||
◆ Absorbent glass mat technology;
◆ Recognized by UL & CE;
◆ ABS container.
Constant Current Discharge Characteristics (A, 25℃)
|
F.V/TIME |
5min |
10min |
15min |
20min |
30min |
45min |
60min |
3h |
5h |
10h |
20h |
|
1.60V/cell |
35.1 |
21.5 |
16.9 |
13.4 |
9.30 |
6.67 |
5.27 |
1.95 |
1.34 |
0.72 |
0.39 |
|
1.65V/cell |
34.0 |
20.9 |
16.5 |
13.1 |
9.12 |
6.54 |
5.19 |
1.94 |
1.33 |
0.72 |
0.39 |
|
1.67V/cell |
33.5 |
20.5 |
16.3 |
12.9 |
9.00 |
6.46 |
5.13 |
1.93 |
1.33 |
0.72 |
0.39 |
|
1.70V/cell |
32.6 |
20.0 |
15.9 |
12.6 |
8.84 |
6.34 |
5.05 |
1.93 |
1.32 |
0.72 |
0.38 |
|
1.75V/cell |
31.2 |
19.1 |
15.4 |
12.2 |
8.62 |
6.18 |
4.95 |
1.91 |
1.31 |
0.71 |
0.38 |
|
1.80V/cell |
29.5 |
18.1 |
14.6 |
11.5 |
8.31 |
5.96 |
4.80 |
1.86 |
1.27 |
0.70 |
0.37 |
Constant Power Discharge Characteristics (Watt/cell, 25℃)
|
F.V/TIME |
5min |
10min |
15min |
20min |
30min |
45min |
60min |
3h |
5h |
10h |
20h |
|
1.60V/cell |
66.7 |
41.5 |
33.4 |
26.4 |
18.3 |
13.1 |
10.4 |
3.90 |
2.68 |
1.45 |
0.78 |
|
1.65V/cell |
64.7 |
40.2 |
32.6 |
25.8 |
18.0 |
12.9 |
10.2 |
3.88 |
2.66 |
1.44 |
0.77 |
|
1.67V/cell |
63.7 |
39.6 |
32.0 |
25.4 |
17.7 |
12.7 |
10.1 |
3.87 |
2.65 |
1.44 |
0.77 |
|
1.70V/cell |
62.0 |
38.6 |
31.4 |
24.9 |
17.4 |
12.5 |
9.96 |
3.85 |
2.64 |
1.43 |
0.77 |
|
1.75V/cell |
59.4 |
36.9 |
30.3 |
24.0 |
17.0 |
12.2 |
9.76 |
3.83 |
2.63 |
1.43 |
0.77 |
|
1.80V/cell |
56.0 |
34.9 |
28.7 |
22.7 |
16.4 |
11.7 |
9.46 |
3.71 |
2.55 |
1.40 |
0.75 |
Note: The above characteristics data can be obtained within three charge/discharge cycles.
:'Times New Roman';color:rgb(0,0,0);font-size:9.0000pt;mso-font-kerning:1.0000pt;" >0.70Note: The above characteristics data can be obtained within three charge/discharge cycles.
ISO9001 approval, FN: Q3105105131
ISO14001 CTC04912E10302ROM
OHS MS18001 04912S10150ROM
UL approval, FN:MH28204
CE approval, FN:G2M20201-0102-E-16
KS approval, FN:KS C 8519
VDS approval
BS approval
Typical Applications:
Alarm System
Cable Television
Communication Equipment
Control Equipment
Security System
Medical Equipment
UPS
Power Tools
Toys
Emergency Power System
