HIGH RATE DISCHARGE SLA BATTERY
- Payment Type:
- L/C, T/T, D/P
- Incoterm:
- FOB, CFR, CIF
- Min. Order:
- 100 Piece/Pieces
- Min. Order:
- 100 Piece/Pieces
- Delivery Time:
- 30 Days
- Transportation:
- Ocean, Land
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | china |
|---|---|
| Productivity: | 2000, 000kvah/ Year |
| Supply Ability: | 2000, 000kvah/ Year |
| Payment Type: | L/C,T/T,D/P |
| Incoterm: | FOB,CFR,CIF |
| Certificate: | iso,UL,CE |
| Transportation: | Ocean,Land |

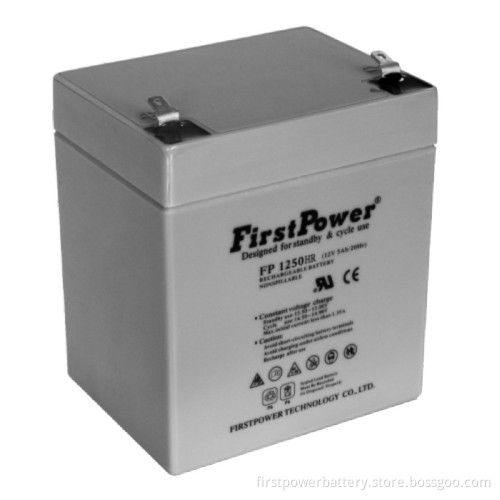

FP1250HR is a typical high rate discharge battery special designed for all kinds of high-power-ouput using application,
It is a non-spillable and sealed and Maintenance-free operation battery, with high quality and high reliability, good deep discharge recovery, low self-discharge ,etc. The battery apply solid copper terminals,tank-formed plates computer-aided design and manufacturing
Main features as follow:
* Standby use.
* High rate discharge construction.
* ISO9001, 14001, OHSMS 18001 certified.* UL, CE, VdS Approved. UL recognized components under UL 1989 (file number MH28204 ).
*With isolated seal, it can be put in horizontal way, vertical way and side way, its safety and functions totally will not be affected.
* With special formula to manufacture lead calcium alloy as well as automatic progresses, gassing will be less.
* Long life, low self-discharge rate and high reliability.
* It has safety, low resistance so recharge is easy and energy output is more remarkable.
* Container material could be frame retardant ABS or PP with ranking UL 94V-0 by model.
* When it is used in safe surroundings, the battery is maintenance free, adding water is unnecessary and it can be recharged repeatedly.
* Batteries are strictly tested by computer charge/discharge system.
* Complies with IATA/ICAO Special Provision A67 for air transport.
* Classified per MG Amendment 27 as a non-hazardous material for water transport.
* Recognized by DOT as "Dry charge" 49 CFR 171-189 for surface transport.
Specifications
Nominal Voltage
12 V
Number of cell
6 cells
Capacity(15min.rate, 25℃)
22 Watts/cell
Dimension
Length
90±1mm (3.54inch)
Width
70±1mm (2.76inch)
Height
101±1mm (3.98inch)
Total Height
107±1mm (4.21inch)
Approx. Weight
1.8kg (3.97lbs)±5%
Terminal type
T1/T2
Internal resistance
(Fully charged, 25℃)
Approx. 22mΩ
Capacity affected by temperature (20HR)
40℃
102%
25℃
100%
0℃
85%
-15℃
65%
Self-discharge
(25℃)
3 month
Remaining Capacity: 91%
6 month
Remaining Capacity: 82%
12 month
Remaining Capacity: 65%
Nominal operating temperature
25℃±3℃(77℉±5℉)
Operating temperature range
Discharge
-15℃~50℃(5℉~122℉)
Charge
-10℃~50℃(14℉~122℉)
Storage
-20℃~50℃(-4℉~122℉)
Float charging voltage(25℃)
13.60 to 13.80V
Temperature compensation:
-18mV/℃
Cyclic charging voltage(25℃)
14.50 to 14.90V
Temperature compensation:
-30mV/℃
Maximum charging current
1.5A
Terminal material
Copper
Maximum discharge current
75A(5 sec.)
Designed floating life(20℃)
10 years
◆ Specially designed for high power output.
◆ Absorbent glass mat technology;
◆ Recognized by UL & CE;
◆ ABS container.
Constant Current Discharge Characteristics (A, 25℃)
F.V/TIME
5min
10min
15min
20min
30min
45min
60min
2h
3h
5h
1.60V/cell
24.1
14.8
11.6
9.22
6.39
4.58
3.62
1.86
1.3
0.89
1.65V/cell
23.4
14.3
11.3
9
6.26
4.49
3.56
1.84
1.29
0.89
1.67V/cell
23
14.1
11.2
8.85
6.18
4.43
3.52
1.83
1.29
0.88
1.70V/cell
22.4
13.7
10.9
8.67
6.07
4.35
3.47
1.81
1.28
0.88
1.75V/cell
21.4
13.1
10.6
8.37
5.92
4.24
3.4
1.79
1.28
0.88
1.80V/cell
20.2
12.4
10
7.93
5.7
4.09
3.3
1.74
1.24
0.85
Constant Power Discharge Characteristics (Watt/cell, 25℃)
|
F.V/TIME |
5min |
10min |
15min |
20min |
30min |
45min |
60min |
2h |
3h |
5h |
|
1.60V/cell |
45.8 |
29.6 |
22.9 |
18.2 |
12.6 |
9.02 |
7.12 |
3.68 |
2.6 |
1.79 |
|
1.65V/cell |
44.4 |
29.1 |
22.4 |
17.7 |
12.3 |
8.84 |
7.01 |
3.64 |
2.59 |
1.77 |
|
1.67V/cell |
43.1 |
28.5 |
22 |
17.4 |
12.2 |
8.73 |
6.94 |
3.62 |
2.58 |
1.77 |
|
1.70V/cell |
42.6 |
27.4 |
21.5 |
17.1 |
12 |
8.57 |
6.84 |
3.58 |
2.57 |
1.76 |
|
1.75V/cell |
40.8 |
26.7 |
20.8 |
16.5 |
11.7 |
8.36 |
6.7 |
3.54 |
2.55 |
1.75 |
|
1.80V/cell |
38.5 |
24.9 |
19.7 |
15.6 |
11.2 |
8.06 |
6.49 |
3.44 |
2.47 |
1.7 |
Note: The above characteristics data can be obtained within three charge/discharge cycles.
ISO9001 approval, FN: Q3105105131
ISO14001 CTC04912E10302ROM
OHS MS18001 04912S10150ROM
UL approval, FN:MH28204
CE approval, FN:G2M20201-0102-E-16
KS approval, FN:KS C 8519
VDS approval
BS approval
Typical Applications:
Alarm System
Cable Television
Communication Equipment
Control Equipment
Security System
Medical Equipment
UPS
Power Tools
Toys
Emergency Power System
