High energy output battery 12V4.5AH
- Payment Type:
- L/C, T/T, D/P
- Incoterm:
- FOB, CFR, CIF
- Min. Order:
- 100 Piece/Pieces
- Min. Order:
- 100 Piece/Pieces
- Delivery Time:
- 30 Days
- Transportation:
- Ocean, Land
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | china |
|---|---|
| Productivity: | 2000, 000kvah/ Year |
| Supply Ability: | 2000, 000kvah/ Year |
| Payment Type: | L/C,T/T,D/P |
| Incoterm: | FOB,CFR,CIF |
| Certificate: | iso,UL,CE |
| Transportation: | Ocean,Land |

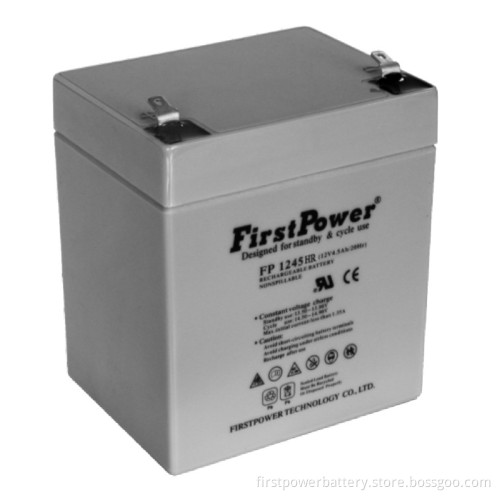

FP1245HR is a typical high rate discharge battery special designed for all kinds of high-power-ouput using application,
It is a non-spillable and sealed and Maintenance-free operation battery, with high quality and high reliability, good deep discharge recovery, low self-discharge ,etc. The battery apply solid copper terminals,tank-formed plates computer-aided design and manufacturing
Main features as follow:
* Standby use.
* High rate discharge construction.
* ISO9001, 14001, OHSMS 18001 certified.* UL, CE, VdS Approved. UL recognized components under UL 1989 (file number MH28204 ).
*With isolated seal, it can be put in horizontal way, vertical way and side way, its safety and functions totally will not be affected.
* With special formula to manufacture lead calcium alloy as well as automatic progresses, gassing will be less.
* Long life, low self-discharge rate and high reliability.
* It has safety, low resistance so recharge is easy and energy output is more remarkable.
* Container material could be frame retardant ABS or PP with ranking UL 94V-0 by model.
* When it is used in safe surroundings, the battery is maintenance free, adding water is unnecessary and it can be recharged repeatedly.
* Batteries are strictly tested by computer charge/discharge system.
* Complies with IATA/ICAO Special Provision A67 for air transport.
* Classified per MG Amendment 27 as a non-hazardous material for water transport.
* Recognized by DOT as "Dry charge" 49 CFR 171-189 for surface transport.
Specifications
Nominal Voltage
12 V
Number of cell
6 cells
Capacity(15min.rate, 25℃)
22 Watts/cell
Dimension
Length
90±1mm (3.54inch)
Width
70±1mm (2.76inch)
Height
101±1mm (3.98inch)
Total Height
107±1mm (4.21inch)
Approx. Weight
1.6kg (3.52lbs)±5%
Terminal type
T1/T2
Internal resistance
(Fully charged, 25℃)
Approx. 26 mΩ
Capacity affected by temperature (20HR)
40℃
102%
25℃
100%
0℃
85%
-15℃
65%
Self-discharge
(25℃)
3 month
Remaining Capacity: 91%
6 month
Remaining Capacity: 82%
12 month
Remaining Capacity: 65%
Nominal operating temperature
25℃±3℃(77℉±5℉)
Operating temperature range
Discharge
-15℃~50℃(5℉~122℉)
Charge
-10℃~50℃(14℉~122℉)
Storage
-20℃~50℃(-4℉~122℉)
Float charging voltage(25℃)
13.60 to 13.80V
Temperature compensation:
-18mV/℃
Cyclic charging voltage(25℃)
14.50 to 14.90V
Temperature compensation:
-30mV/℃
Maximum charging current
1.35A
Terminal material
Copper
Maximum discharge current
75A(5 sec.)
Designed floating life(20℃)
10 years
◆ Specially designed for high power output.
◆ Absorbent glass mat technology;
◆ Recognized by UL & CE;
◆ ABS container.
Constant Current Discharge Characteristics (A, 25℃)
F.V/TIME
1min
3min
5min
7min
10min
15min
20min
30min
45min
60min
90min
2h
3h
5h
1.60V/cell
37.0
25.0
20.6
15.8
12.8
10.0
7.96
5.52
3.96
3.13
2.12
1.61
1.12
0.77
1.65V/cell
35.8
24.2
20.2
15.4
12.4
9.76
7.77
5.41
3.88
3.07
2.08
1.59
1.11
0.77
1.67V/cell
35.0
23.8
19.9
15.2
12.2
9.67
7.64
5.34
3.83
3.04
2.06
1.58
1.11
0.76
1.70V/cell
34.0
23.1
19.3
14.8
11.8
9.41
7.49
5.24
3.76
3.00
2.04
1.56
1.11
0.76
1.75V/cell
32.5
21.9
18.5
14.1
11.3
9.15
7.23
5.11
3.66
2.94
2.01
1.55
1.11
0.74
1.80V/cell
30.3
20.8
17.4
13.3
10.7
8.64
6.85
4.92
3.53
2.85
1.95
1.50
1.07
0.73
Constant Power Discharge Characteristics (Watt/cell, 25℃)
|
F.V/TIME |
1min |
3min |
5min |
7min |
10min |
15min |
20min |
30min |
45min |
60min |
90min |
2h |
3h |
5h |
|
1.60V/cell |
69.4 |
47.3 |
39.6 |
30.6 |
25.0 |
19.9 |
15.8 |
11.0 |
7.87 |
6.22 |
4.21 |
3.21 |
2.25 |
1.55 |
|
1.65V/cell |
66.9 |
45.8 |
38.6 |
29.7 |
24.1 |
19.3 |
15.3 |
10.7 |
7.68 |
6.09 |
4.14 |
3.16 |
2.23 |
1.55 |
|
1.67V/cell |
65.3 |
44.9 |
37.8 |
29.2 |
23.7 |
19.0 |
15.0 |
10.5 |
7.54 |
5.99 |
4.09 |
3.14 |
2.23 |
1.52 |
|
1.70V/cell |
63.4 |
43.6 |
36.8 |
28.2 |
22.9 |
18.4 |
14.8 |
10.3 |
7.37 |
5.88 |
4.02 |
3.09 |
2.20 |
1.52 |
|
1.75V/cell |
60.3 |
41.2 |
35.1 |
26.9 |
21.8 |
17.8 |
14.1 |
9.93 |
7.15 |
5.73 |
3.95 |
3.06 |
2.20 |
1.49 |
|
1.80V/cell |
56.1 |
39.0 |
33.0 |
25.5 |
20.5 |
16.7 |
13.3 |
9.59 |
6.87 |
5.54 |
3.82 |
2.95 |
2.13 |
1.46 |
Note: The above characteristics data can be obtained within three charge/discharge cycles.
ISO9001 approval, FN: Q3105105131
ISO14001 CTC04912E10302ROM
OHS MS18001 04912S10150ROM
UL approval, FN:MH28204
CE approval, FN:G2M20201-0102-E-16
KS approval, FN:KS C 8519
VDS approval
BS approval
Typical Applications:
Alarm System
Cable Television
Communication Equipment
Control Equipment
Security System
Medical Equipment
UPS
Power Tools
Toys
Emergency Power System
