32650 -5000mAh Lithium iron phosphate battery
- Payment Type:
- T/T
- Incoterm:
- FOB
- Min. Order:
- 1000 Bag/Bags
- Min. Order:
- 1000 Bag/Bags
- Delivery Time:
- 30 Days
- Transportation:
- Ocean, Land
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | ShenZhen City,GuangDong Province,China |
|---|---|
| Productivity: | 4000 Pieces/Day |
| Supply Ability: | 4000 Pieces/Day |
| Payment Type: | T/T |
| Incoterm: | FOB |
| Certificate: | MSDS/ROHS |
| Transportation: | Ocean,Land |
| Port: | Shenzhen |

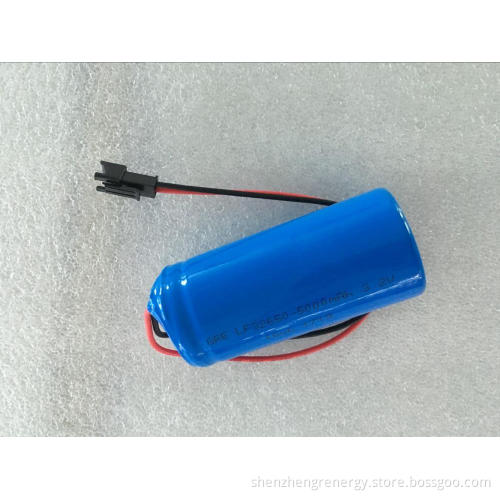

32650 -5000mAh Lithium iron phosphate battery
|
Item |
Rating |
Note |
|
|
Cell |
Type |
LiFePO4 Battery |
|
|
Cell Model |
LF32650-5000 |
|
|
|
Nominal Capacity |
5000mAh |
Discharge : 0.2C Cut-off Voltage: 2.5V |
|
|
Minimum Capacity |
4900mAh |
Discharge : 0.2C Cut-off Voltage: 2.5V |
|
|
Nominal voltage |
3.2V |
|
|
|
Internal Impedance |
≤30mΩ |
|
|
|
Dimension |
MAX.32.4x69.5mm |
|
|
|
Weight |
140g |
|
|
|
Batterypack |
Pack Method |
1S1P |
|
|
Nominal Capacity |
5Ah |
Discharge : 0.2C |
|
|
Minimum Capacity |
4.9Ah |
Discharge : 0.2C |
|
|
Nominal Voltage |
3.2V |
|
|
|
Energy |
16Wh |
|
|
|
Charge Voltage |
3.65V |
|
|
|
Discharge cut-off voltage |
2.5V |
|
|
|
Charge Method |
CC/CV |
|
|
|
Standard Charge Current |
1A |
|
|
|
Max. Charge Current |
1A |
|
|
|
Standard Discharge Current |
1A |
|
|
|
Max. Continues Discharge current |
1A |
|
|
|
Cycle Life |
1500 times |
≥80% |
|
|
Internal Impedance |
≤140mΩ |
|
|
|
Dimension |
MAX. 33.0*73.5mm |
|
|
|
Output Wire |
1007 AWG20 |
L=30 ±5 mm |
|
|
Output Connector |
SMP-2P |
Positive |
|
|
Weight |
Approx 143kg |
|
|
|
Working Temperature Range |
Charge: 0°C--45°C Discharge: -20°C--60°C |
||
