Automatic Control Cable Cutting Jacket and Insulation Stripping Machine
-
$2999.00≥1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Ocean, Land, Air, Express
- Port:
- shenzhen
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Supply Ability: | 30 pcs per month |
|---|---|
| Payment Type: | T/T,Paypal |
| Incoterm: | FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery |
| Transportation: | Ocean,Land,Air,Express |
| Port: | shenzhen |
Product Description
Product Description

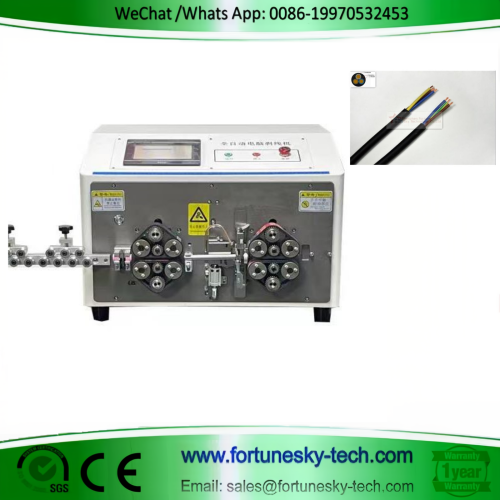

The JT508: All-in-One Power Cable Processing Machine
The JT508 Automatic Control Cable Cut-Stripper is a one-stop solution for all your power cable processing needs. This versatile machine tackles multi-core power cords and even special single-core wires, maximizing your efficiency and production quality.
Unmatched Functionality:
Multi-task Master: Perform wire cutting, jacket stripping, core wire stripping, and more, all on a single machine. This eliminates the need for multiple tools and streamlines your workflow.
Precision Stripping: Achieve accurate and consistent results with head stripping lengths from 0.1-250mm and tail stripping lengths from 0.1-100mm.
Data Storage and Retrieval: Store up to 100 sets of processing data for easy retrieval, saving you time and effort on repeat jobs.
Adjustable Cutting Lengths: Cut wires to any desired length with ease.
Technical Specifications:
Model: JT508
Display: Chinese/English (switchable)
Data Storage Capacity: 100 sets
Processing Wire Range:
Cable Diameter: Up to 12mm
Core Wire Quantity: Maximum 8
Stripping Lengths:
Wire Head: 0.1-250mm
Wire Tail: 0.1-100mm
Cutting Length: Adjustable
Wire Feeding and Take-up: Automatic
Main Control Board: Motion Control Board
Drive Mode: Crawler Drive
Net Weight: 105kg
Dimensions: 930mm x 420mm x 370mm
Standard and Optional Features:
Blades: Choose from high-speed steel or tungsten steel blades for optimal performance.
Feeding Rollers: Iron heat-treated rollers or knurled rubber wheels ensure smooth wire feeding.
Display: User-friendly LCD display with a bilingual (Chinese/English) interface.
Additional Features (Optional):
Conduit Diameter Support: Ø4mm, Ø8mm, Ø10mm, Ø12mm
Catheter Swing
Automatic Wire Missing Alarm
Intermediate Cutting
Wire Pressure Regulator
Wire Straightener
Cooling Fan
Inching Manual Commissioning
Cylinder
Counter
Fixed Quantity and Time Control
The JT508 is a powerful and versatile solution for all your power cable processing needs. This all-in-one machine offers exceptional functionality, precision, and user-friendly features, maximizing your productivity and ensuring consistent, high-quality results.
