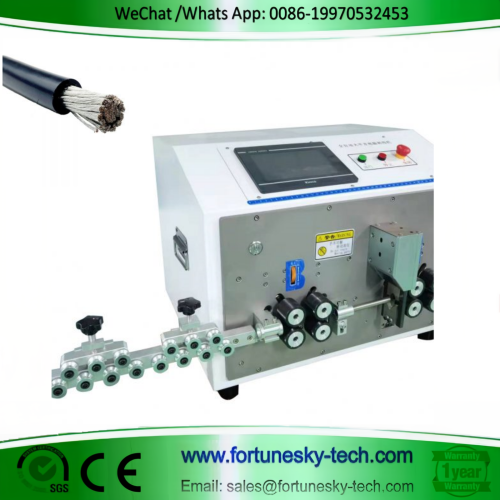

AutoStrip Max 70mm² Wire Cutting and Stripping Machine
-
$2999.00≥1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Ocean, Land, Air, Express
- Port:
- shenzhen
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Supply Ability: | 30 pcs per month |
|---|---|
| Payment Type: | T/T,Paypal |
| Incoterm: | FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery |
| Transportation: | Ocean,Land,Air,Express |
| Port: | shenzhen |
Product Description
Product Description
The AutoStrip Max: Powerhouse for Thick Wire Processing
The AutoStrip Max 70mm² Wire Cutting and Stripping Machine is a game-changer for handling thick wires. This advanced machine boasts superior processing power, user-friendly features, and exceptional versatility, making it ideal for various industrial applications.
Intelligent Control and Efficient Operation:
Advanced Processing Power: The cutting-edge 64-bit intelligent control system ensures efficient and precise wire processing.
User-Friendly Touchscreen: The intuitive touchscreen interface simplifies operation and allows for easy storage and retrieval of hundreds of data sets for frequently used settings.
Designed for Thick Wires:
Broad Wire Compatibility: Process a wide range of wires, including electronic wires, new energy wires, automotive power distribution box cables, BV, BVR, PVC, and more.
Large Cutting Capacity: Handles thick wires with a core area of 2.5mm² to 70mm², perfect for industrial applications.
Customizable Processing: Set precise cutting and stripping lengths to meet your specific needs.
Technical Specifications:
Model: JT-507
Dimensions: 600mm x 550mm x 480mm
Weight: 68kg
Display: 7-inch Touchscreen
Power Supply: AC175V-250V, 50/60Hz
Power Consumption: 880W-1280W
Cutting Length: 0.1mm-99999.9mm
Stripping Length: Head: 0.1-300mm, Tail: 0.1-120mm
Cutting Core: 2.5mm² - 70mm²
Cutting Tolerance: 0.002 x L mm
Intermediate Stripping: 13 positions (can be added)
Conduit Diameter: 6mm-19mm
Tool Material: Tungsten Steel/Imported High-Speed Steel
Drive Mode: 8-wheel Drive
Wire Stripping Rate: 800-2000 strips per hour (adjustable)
Wire Pressure Adjustment: Manual Pulley Adjustment
Pulse Equivalent: 1 pulse = 1 step
In-line Error: 0.02mm
Blade Motor Accuracy: 0.1mm per step (Silent Hybrid Stepper Motor)
Additional Features: Automatic outgoing line, automatic incoming line, timing start
The AutoStrip Max is a powerful and versatile solution for thick wire processing. This intelligent machine with its user-friendly features ensures efficient, precise, and professional results, making it a valuable asset for various industrial applications.
