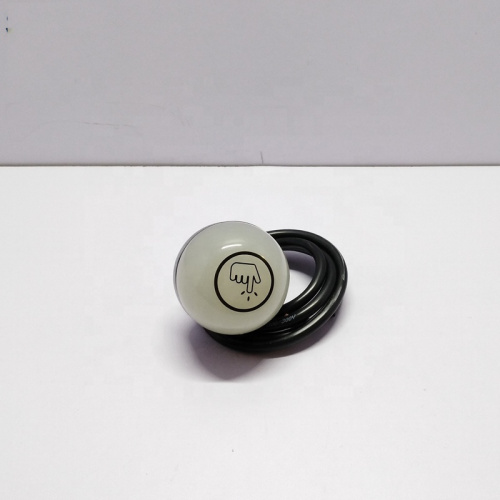

Pick to light use for Automotive Parts
-
$50.00≥1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Air
- Port:
- Shenzhen, Hongkong, Guangzhou
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 1000/week |
| Supply Ability: | 1000/week |
| Payment Type: | T/T,Paypal,online payment |
| Incoterm: | FOB |
| Certificate: | CE FCC ROHS |
| HS Code: | 8512201000 |
| Transportation: | Air |
| Port: | Shenzhen,Hongkong,Guangzhou |
Pick-to-Light
systems dramatically increase the productivity of e-commerce order fulfillment
while reducing operator errors. Light Directed Picking of supply chain technology has a
profound impact on order picking productivity and warehouse management. with LED light by picking usually organized by your existing work zones, which helps minimize walking – and, therefore, boosts efficiency. Additionally, if an order is required to pass through multiple work zones, your pick-to-light system follows the order, helping to reduce idle time. Some pick-to-light systems can even be mounted onto mobile carts or conveyor systems, allowing a single operator to fulfill an entire order, through many zones of a warehouse.
Power: Less 5W;
Input: DC12V-30V;
Supply current:
Red, Green, Blue<75mA(12VDC); <40mA(30VDC);
Yellow, Cyan, Pink<140mA(12VDC); <70mA(30VDC);
White<205mA(12VDC); <100mA(30VDC)
IO type: Job light: Gree; Job+Sense: Yellow;
Mis-picking(Sense but no job): Red.
IB intelligent bus: Indicator color customized and controlled by instruction.
IOD: Three colors control separately
TW-T3N3
Supply Voltage
12V-30Vdc
Supply Current
Red, Green, Blue:<75mA@12Vdc; <40mA@30Vdc
Output Rating:
a, Maximum Load
150mA
b, On-State Saturation Voltage
<2V(10mA dc); <2.5V(150mA)
c, Off-State Leakage Current
<10uA(30Vdc)
Indicators
7 colors available: red, green, yellow, blue white etc
I/O Type
IB intelligent bus
7 colors controlled by instruction
Electronic Protection
Protected against reverse polarity and over current
Output Response Time
25 milliseconds(max.) On and Off
Connections
M12 QD wth 0.3m cable, or 1m cable
Working temperature (℃)
-40℃~50℃
Humidity
95% at 50℃
IP rating
IP69K
Dimension
50mmx50mm(ODxH)
Mounting thread
M30x1.5mm
Material
ABS and Polycarbonate
Approval
CE FCC
Feature
Interactive touch button;
Actuated with work gloves;
Rugged, fully encapsulated IP69K construction;
7 colors available
Price is much cheaper than international brand
Job light: Green, Sense+Job light: Yellow, Mis-picking(Sense, but no job):Red
