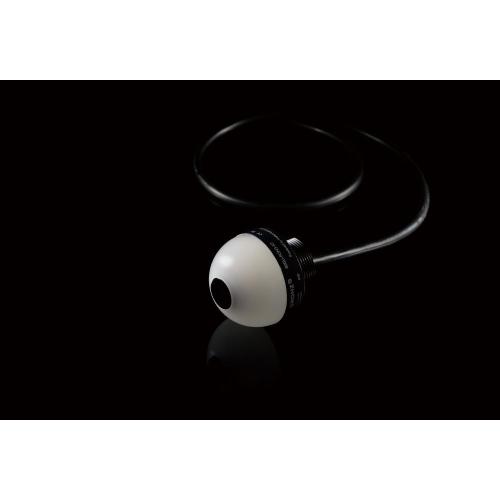

Optical photoelectronic pick to light sensor 50mm
-
$50.00≥1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Air
- Port:
- Shenzhen, Hongkong, Guangzhou
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 1000/week |
| Supply Ability: | 1000/week |
| Payment Type: | T/T,Paypal,online payment |
| Incoterm: | FOB |
| Certificate: | CE FCC ROHS |
| HS Code: | 8512201000 |
| Transportation: | Air |
| Port: | Shenzhen,Hongkong,Guangzhou |
What is the Pick to light system?
Pick to light (or PTL) is an order picking by light technology for warehouses and distribution centers that utilizes lights and LEDs on racks or shelves to indicate pick locations and guide order pickers through their work. pick by light systems increase picking efficiency compared to so-called RF picking or paper pick lists. Although PTL can been used for picking cases or each, it is most often used today for picking less-than-case quantities in high density/high velocity pick modules.
Pick-to-Light, consisting of storage compartment displays, belongs to the paperless order picking methods, supports the order picker with light during order picking. The picking quantity is displayed directly at the storage compartment and confirmed at the acknowledgement button.
pick to light system used in automation, pharmacy, hospital, WMS system .
Power: Less 5W;
Input: DC12V-30V;
Supply current:
Red, Yelloe, Blue maximum 50mA 24DC;
Yellow, Cyan, Pink<140mA(12VDC); <70mA(30VDC);
White<205mA(12VDC); <100mA(30VDC)
Job inactivity--Red, Job activity--Blue;Job-- finish--Green;
IB intelligent bus: Indicator color customized and controlled by instruction.
TW-T2N2
Supply Voltage
12V-30Vdc
Supply Current
Red, Green, Blue:<75mA@12Vdc; <40mA@30Vdc
Output Rating:
a, Maximum Load
150mA
b, On-State Saturation Voltage
<2V(10mA dc); <2.5V(150mA)
c, Off-State Leakage Current
<10uA(30Vdc)
Indicators
7 colors available: red, green, yellow, blue white etc
I/O Type
IB intelligent bus
7 colors controlled by instruction
Electronic Protection
Protected against reverse polarity and over current
Output Response Time
25 milliseconds(max.) On and Off
Connections
M12 QD wth 0.3m cable, or 1m cable
Working temperature (℃)
-40℃~50℃
Humidity
95% at 50℃
IP rating
IP69K
Dimension
50mmx50mm(ODxH)
Mounting thread
M30x1.5mm
Material
ABS and Polycarbonate
Approval
CE FCC
Feature
Interactive touch button;
Actuated with work gloves;
Rugged, fully encapsulated IP69K construction;
7 colors available
Price is much cheaper than international brand
Job light: Green, Sense+Job light: Yellow, Mis-picking(Sense, but no job):Red
