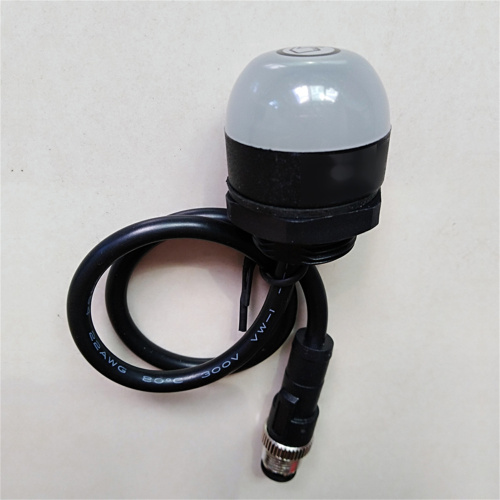

Pick to light touch sensor with 50mm indicator lamp
-
$50.00≥1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Air
- Port:
- Shenzhen, Hongkong, Guangzhou
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 1000/week |
| Supply Ability: | 1000/week |
| Payment Type: | T/T,Paypal,online payment |
| Incoterm: | FOB |
| Certificate: | CE FCC ROHS |
| HS Code: | 8512201000 |
| Transportation: | Air |
| Port: | Shenzhen,Hongkong,Guangzhou |
50mm Illuminated Touch Button Pick to Light Indicator LED Lighting and Circuitry Design 12V ~ 30V Pick to Light device is installed at each storage compartment and controlled in real time. As soon as the software of the warehouse management system starts an order, the Pick-to-Light compartment displays light up quantities at the storage compartments. The removal of the goods is confirmed directly with the acknowledgement button and the stock change is immediately booked automatically. Light Directed Picking with six-digit quantity display, Suitable for applications where the quantity to be picked has to be read from a distance. order picking by light mainly use for rack shelf for warehouse WMS system.
Power: Less 5W;
Supply current:
Red, Green, Blue<75mA(12VDC); <40mA(30VDC);
Yellow, Cyan, Pink<140mA(12VDC); <70mA(30VDC);
White<205mA(12VDC); <100mA(30VDC)
IB
intelligent bus: Indicator color customized and controlled by instruction.
IOD:
Three colors control separately
Input: DC12V-30V;
IO type: Job light: Gree; Job+Sense: Yellow;
Mis-picking(Sense but no job): Red.
TW-T3N3
Supply Voltage
12V-30Vdc
Supply Current
Red, Green, Blue:<75mA@12Vdc; <40mA@30Vdc
Output Rating:
a, Maximum Load
150mA
b, On-State Saturation Voltage
<2V(10mA dc); <2.5V(150mA)
c, Off-State Leakage Current
<10uA(30Vdc)
Indicators
7 colors available: red, green, yellow, blue white etc
I/O Type
IB intelligent bus
7 colors controlled by instruction
Electronic Protection
Protected against reverse polarity and over current
Output Response Time
25 milliseconds(max.) On and Off
Connections
M12 QD wth 0.3m cable, or 1m cable
Working temperature (℃)
-40℃~50℃
Humidity
95% at 50℃
IP rating
IP69K
Dimension
50mmx50mm(ODxH)
Mounting thread
M30x1.5mm
Material
ABS and Polycarbonate
Approval
CE FCC
Feature
Interactive touch button;
Actuated with work gloves;
Rugged, fully encapsulated IP69K construction;
7 colors available
Price is much cheaper than international brand
Job light: Green, Sense+Job light: Yellow, Mis-picking(Sense, but no job):Red
