Yamaha YV100II I O card KV1-M4570-022
- Payment Type:
- T/T, Paypal, Money Gram, Western Union
- Incoterm:
- FOB, CFR, CIF
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 2 Days
- Transportation:
- Ocean, Land, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 1000pcs/M |
| Supply Ability: | 1000pcs/M |
| Payment Type: | T/T,Paypal,Money Gram,Western Union |
| Incoterm: | FOB,CFR,CIF |
| Certificate: | CCC,CE |
| Transportation: | Ocean,Land,Air |

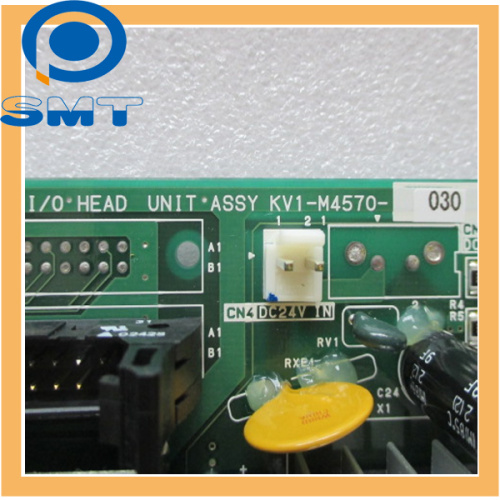

Yamaha I O card KV1-M4570-022 YV100 SMT SPARE PARTS
Smt Yamaha Conveyor Belt, Smt Yamaha placement parts, Yamaha Smt Machine Spare Parts, Yamaha Smt Image version Board, Yamaha ys12 machine spares, Yamaha chip mounter parts
| Part name | I O BOARD |
| Part number |
KV1-M4570-022 |
| Part notes | YV100 |
YV100II
1 KM5-M4510-10X MOTHER,KM5
2 KM5-M5880-01X D.POWER ASSY.
3 KM5-M4200-02X SYSTEM UNIT ASSY.
5 KL0-M53E2-00X TRANS1 ASSY KL0
8 KJ1-M5303-00X SW POWER MMR270
11 KM5-M5840-02X SERVO BOARD ASSY
12 KM5-M441H-02X VISION BOARD ASSY
13 KJ0-M5810-E2X DRIVER BOARD ASSY
13-1 KJ0-M5810-42X DRIVER BOARD ASSY
YV100X
No. Part No. Part Name Q'ty Remarks Date Revised No.
1 KV1-M4110-00X BOX ASSY,C/R 1
2 KM5-M4510-20X MOTHER BOARD ASSY. 1
3 KM5-M5840-02X SERVO BOARD ASSY. 1
4 KM5-M4200-01X SYSTEM UNIT ASSY. 1
4-1 KM5-M4200-02X SYSTEM UNIT ASSY 1 X2 M960134
5 KJ0-M5810-K2X DRIVER BOARD ASSY. 1
5-1 KJ0-M5810-K3X DRIVER BOARD ASSY 1 X1 M960067
6 KM5-M441H-02X VISION BOARD ASSY. 1
7 KM5-M5880-11X D.POWER ASSY. 1
8 KJ0-M4134-10X PANEL NO SERVO 1
9 KJ0-M4132-10X PANEL ,NO DRIVER 2
10 KM5-M4138-10X PANEL LEFT 2 1
11 KJ1-M4185-10X FAN MOTOR ASSY 3
12 KV1-M5303-00X SW POWER DC5 1
13 KV1-M5303-10X SW POWER DC12 1
14 KL0-M53E2-00X TRANS 1 ASSY KL0 1
No. Part No. Part Name Q'ty Remarks Date Revised No.
1 KM5-M5840-02X SERVO BOARD ASSY. 1
2 KJ0-M5810-H2X DRIVER BOARD ASSY. 1 for YTF only
2-1 KJ0-M5810-H3X DRIVER BOARD ASSY 1 X1 M960067
3 KJ0-M5810-G2X DRIVER BOARD ASSY. 1 for ATS only
3-1 KJ0-M5810-G3X DRIVER BOARD ASSY 1 X1 99/6 M960067
