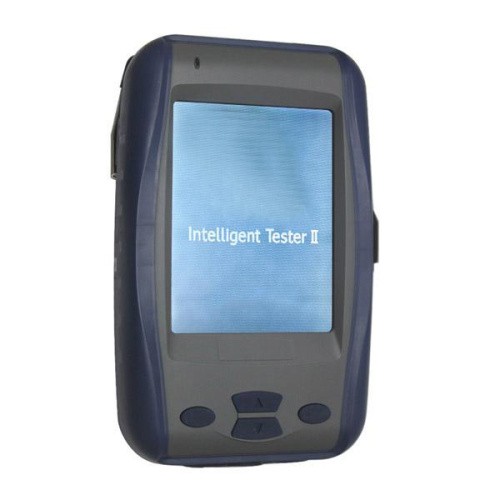

Intelligent Tester IT2 2017.1 for Toyota Lexus and Suzuki

Newest Denso V2017.1 Intelligent Tester  IT2 for Toyota Lexus and Suzuki With Oscilloscope

Top 4 Reasons to Get Denso Intelligent Tester IT2

1. Software Version: 2017.1
2. Supported Languages: English/ German/ French/ Spanish/ Italian/ Chinese
3. Update By Card, you can buy the latest card .
4. Support Vehicle: Toyota and North America Area Suzuki

Notice:
Computer System Requires: Windows XP system

Denso IT2 Function:

1. All type of Toyota(made after 1996) and Lexus included read code, clear code , data flow, action testing and guard against theft initialization function. And it also supports OBD-II.
2. CAN communication Diagnosis DST-2 realizes more accurate diagnosis through CAN communication that speed is 50 times faster than conventional.
3. Easy operation on LCE display with touch panel 5.7 inch full color display with touch panel assists an easier operation
4. Voltmeter and Oscilloscope not only communication basis diagnosis (Diagnostic code, ECU data monitor, Active test), but also voltmeter and oscilloscope detect alteration in the electric signal to find out the troubling part.
5. Data recording to your PC saved data such as data-list can be downloaded to your pc

IT2 Specification:
1. Feature
Source voltage DC 10-32V
Power consumption normail:7w(12VDC) charging:10w(12VDC)
Operation temp: 0~45°C
Storage temp: -10~ 60°C
LCD Display 5.7 inch
Touch panel input: by finger or stylus pen
Key four(up, down, two function keys)
Built-in clock for a time stamp
PC communication PC card slot CF x 1ch
USB Host: 1ch function:1 ch
Serial 1ch ( RS-232C)
Vehicle communication CAN, ISO9141
Back up power supply lithium-ion battery 7.4v 1000mAH

2. Character
1.Touchscreen & back lighting control
2.Easy & quick
3. User needn't worry about the after service since factory has an open patio for maintenance.

  IT2 Package List:

1. Mainframe -- 1pc
2. OBD-II -- 1pc
3. Charging line -- 1pc
4. Lin line -- 1pc
5. Measuring leads for multimeter 1 -- 1pc
6. Measuring leads for multimeter 2 -- 1pc
7. Card--3pcs(V2017.1 Toyota, V2017.1 Suzuki Card and Blank Card for Backup)

IT2 Names of the Parts:

The names of the Intelligent Tester II parts are as follows.

The names of the Intelligent Tester II parts are as follows.

After Service:

1. Guarantee: one year, from the date equipment arrival
2. Upgrade free for one year
3. Upgrade method: CD

FAQ:
Q1: is  ITS2 with CF card?
A1:yes, IT2 is with CF card, there is a CF card slot at the back of  IT2 main unit. When you use the main unit, please do not take it off, CF card is used to store the tested result. Please refer " ITS2 Names of the Parts".

Q2:Can test the Lexus?
A2: Yes, you can choose the Lexus in the Toyota software.


Q3:Is this new and with the oscilloscope too?
A2: Yes, it is with  oscilloscope .

Q4: Can i use this product to do airbag coding?
A3: Yes,you can.It can do airbag coding and simple ecu programming.
