Mini VGA in and HDMI out Converter

                                               HY-202-F-V2 Mini VGA in and HDMI out Converter

HY-202-F-V2 Mini VGA in and HDMI out Converter Introduction

The Mini VGA to HDMI converter can convert analog PC (RGB HV) and audio signal to digital HDMI format, It can connect  the  analog HD-15 VGA  output  from PC  to  the digital HDMI  input  for  the  latest HD  ready plasma, LCD or DLPTV, Its high bandwidth capability supports a wide range of PC and HDTV resolutions.

HY-202-F-V2 Mini VGA in and HDMI out Converter Features:
Video and audio in full digital HDMI format, no transmission loss!
Supports standard VESA VGA timing output, HDMI output support up to 1920x1200 @ 60Hz.
Provides advanced signal and processing with great precision colors.
No need external power adapter(supporting VGA port and internal power supply)
No need drive software, plug and play.

HY-202-F-V2 Mini VGA in and HDMI out Converter Specifications

Signal Inputs/Output

Video Input: VGA(RGBHV)

HDMI Output: Compatible with HDMI 1.3

Connector: VGA/HDMI

Input Signal: RGB:0.7Vp-p 75ohm

H + V: 3 to 5 Vp-p

Audio Input: Analog audio L,R

Size(L-W-H): 72x42x19mm

Weight(Net): 105g

Warranty: 1 Year

Environmental

Operating Temperature: 0℃ to +70℃

Operating Humidity: 10% to 85%RH(no condensation)

Storage Temperature: -10℃ to +80℃

Storage Humidity: 5% to 90%RH(no condensation)

Power Requirement

External Power Supply: USB Power(500mA)

Power Consumption: 0.5 watts(max)

Converter Unit: FCC,CE

Accessories Adapter

DC Power Adapter: USB Cable

User Manual: English Version

Certificates CE, FCC and RoHs

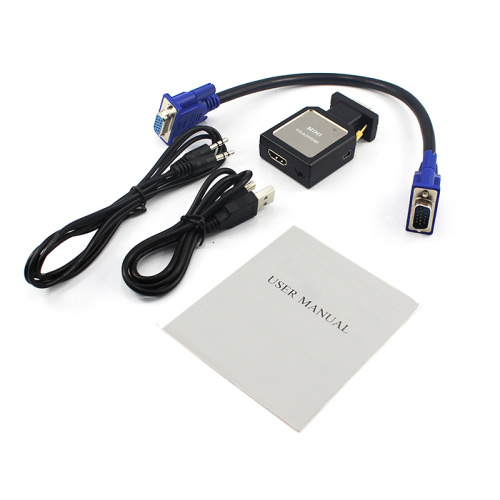

HY-202-F-V2 Mini VGA in and HDMI out Converter Package Content

USB  Cable.................................1  PCS
VGA Cable(20cm).......................1 PCS
3.5mm Audio Cable.....................1 PCS
User Manual(EN).........................1 PCS
