hdmi switch v1.4 support 4k 2k with 4 intput 1 output PIP

                                          hdmi switch v1.4 support 4k 2k with 4 intput 1 output PIP

hdmi switch v1.4 support 4k 2k with 4 intput 1 output PIP Features

• Switch HDMI 4 input ports to HDMI 1 output port with remote control
• Enjoy 4 screens at once, Picture in picture (PIP) gives you the power to utilize all the devices connected to your HDMI switcher
• Experience all your TV in brilliant 4K resolution, deep color, as well as 3D compatibility
• Never leave the comfort of your couch when switching between devices quickly and easily
• Expand the capabilities of your HDTV, connect up to 4 HDMI compatible devices for seamless transitions between gaming, television and more
• Compliant HDMI 1.4 specification
• Supports screen preview (Screen preview function only works in 1080p or lower resolutions)
• Supports deep color 30bit, 36bit
• Supports Blue-Ray 24/50/60fps/HD-DVD/xvYCC
• Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
• Supports signal retiming
• Supports Equalizer TMDS Output: 25MHz–300MHz TMDS clock
• Supports up to 300MHz TMDS clock rate(4Kx2K)for HDMI input
• Supports EDID RAM
• Supports 1080P input up to 15 meters AWG26 HDMI standard cable length, output up to 20 meters AWG26 cable length
• Inputs can be switched with the IR remote control, also can be controlled by button
• Extend the transmission distance and improve transmission signal
• Compatible with DVI through a HDMI to DVI adapter
• Supports hot plug-and-play
• LED indicate signal and power mode
• No loss of quality
• Installs in minutes

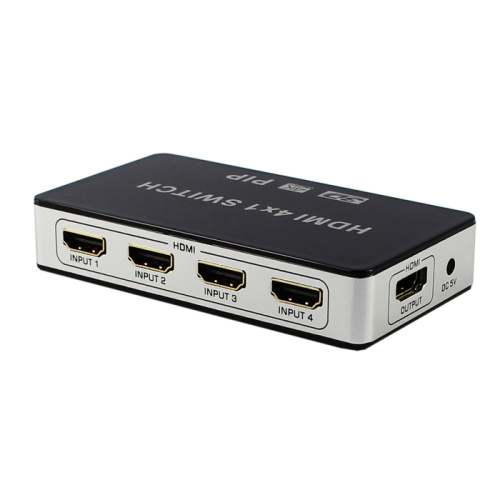

HY-SW4401-A-S 4K HDMI Switch with PIP 4 x 1 Introduction

You can use the remote control the source when you want to see others without long delay.
Watch up to 4 devices on the same screen and easily select which channel you want to view on the full screen. When you select the 1st source,the 1st source will be full screen, the other 3 source will be small picture on the left of the screen, you can see the moving pictures of the other 3 source. You can play Xbox/PS on the main display while you keep watching a TV show, movie, or other program in the second display.

hdmi switch v1.4 support 4k 2k with 4 intput 1 output PIP specifications

Maximum Single Link Range..................................................................24/25/30fps/4Kx2K
HDMI version.........................................................................................HDMI 1.4, HDCP 1.4
HDMI resolution................................................................24/50/60fps/480i/480p/576i/576p/720p/1080i/1080p
Supports video color format.................................................................24bit/deep color 30bit, 36bit
Vertical Frequency Range..............................................................1080p@60Hz; 4K x 2K@30Hz
Supports audio format.....................................................DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Max bandwidth.......................................................................................300MHz
Max band rate.......................................................................................10.2Gbps
Input/Output TMDS signal .................................................................0. 5~ 1. 5 Volts p- p( TTL)
Input/Output DDC signal ....................................................................5Volts p- p ( TTL)
1080P Input cable distance...............................................................≤15m AWG26 HDMI standard cable
1080P Output cable distance............................................................≤20m AWG26 HDMI standard cable
4KX2K Input cable distance...............................................................≤5m AWG24 HDMI standard cable
4KX2K Output cable distance.............................................................≤10m AWG24 HDMI standard cable
Max working current............................................................................350mA
Operating Temperature.....................................................................( - 15 to + 55℃)
Operating Humidity range...................................................................5 to 90% RH ( No Condensation)
Dimension (L x W x H).......................................................................110x60x20mm
Weight..............................................................................................105g

Certifications: CE FCC RoHS

HY-SW4401-A-S 4K HDMI Switch with PIP 4 x 1 Packaging content
1. 4x1 HDMI switch PIP x 1
2. Remote controller x1
3. User Manual x1
4. DC 5V Power Adapter x1
