720P and 1080P SDI to HDMI Converter
- Payment Type:
- L/C, T/T, Paypal, Money Gram, Western Union
- Incoterm:
- FOB, CIF, EXW
- Min. Order:
- 100 Set/Sets
- Min. Order:
- 100 Set/Sets
- Delivery Time:
- 7 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen Chiwan, Shenzhen Yantian, Shenzhen Yunzuo
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 10000pcs/day |
| Supply Ability: | 10000/day |
| Payment Type: | L/C,T/T,Paypal,Money Gram,Western Union |
| Incoterm: | FOB,CIF,EXW |
| Certificate: | CE FCC RoHs |
| HS Code: | 8543709990 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen Chiwan,Shenzhen Yantian,Shenzhen Yunzuo |

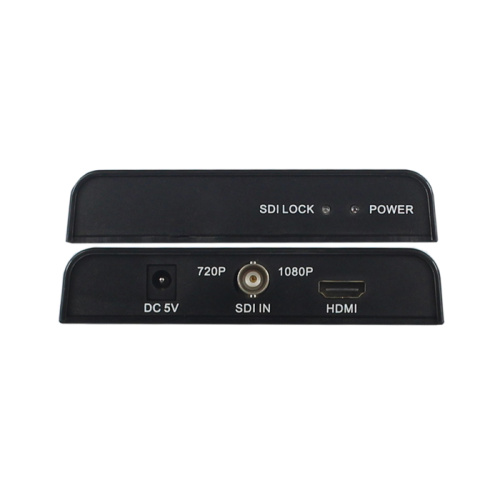

HY-600-V0-A 720P and 1080P SDI to HDMI Converter
HY-600-V0-A 720P and 1080P SDI to HDMI Converter Introduction
SDI to HDMI converter Embedded SDI/HD-SDI audio is supported in the HDMI output allowing a convenient single cable audio video connection.The high transfer rates up to 2.97Gb/s make it easier to distribute and extend your 3G SDI signal while giving you the ability to display your work on HDMI display.
Installation Requirements
HDTV / SDTV with HDMI input
SDI output device: SD-SDI, HD-SDI and 3G-SDI
HY-600-V0-A 720P and 1080P SDI to HDMI Converter Specifications
Power supply................................................................................DC5V/1A
SDI input SDI format....................................................................SD-SDI HD-SDI 3G-SDI
SDI data transfer rates................................................................ 270Mb/s 1.485Gb/s 2.97Gb/s
Impedance.....................................................................................75Ω
SDI input resolutions...................................................................720P/50Hz 720P/60Hz 1080/50Hz 1080i/60Hz, 1080P/24/25/30/50/60Hz Recommend resolutions 720P@50Hz/60Hz or 1080P@50Hz/60Hzt
HDMI output resolutions..............................................................720P/50Hz 720P/60Hz 1080/50Hz 1080i/60Hz, 1080P/24/25/30/50/60Hz
Dimensions..................................................................................120 x 83 x 23mm (L x W x H)
Weight...........................................................................................74g
Working temperature.....................................................................0℃-50℃
Certificates CE FCC and RoHs
HY-600-V0-A SDI 720P and 1080P SDI to HDMI Converter Package content
1 x SDI to HDMI converter
1 x User manual
1 x DC 5V/1A power adapter
