4x2 HDMI Matrix Switch SPDIF 3.5mm Output

 4x2 HDMI Matrix Switch SPDIF 3.5mm Output Introductions:

Contact:tony at szyunzuo.com

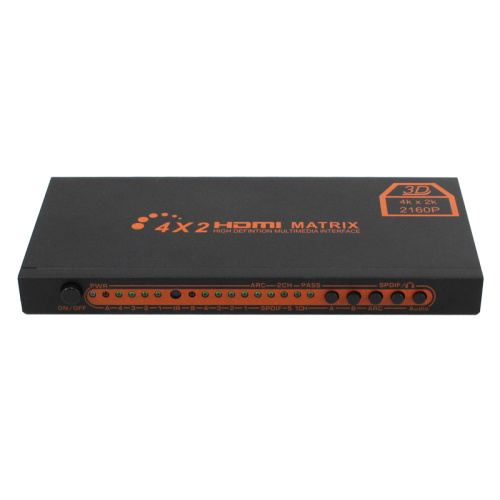

This Matrix 4x2 HIFI can connect four high definition sources and two sinks with audio output optical or stereo simultaneously. It can easily switch or split four high definition video sources to two compatible displays or projectors. The Optical and stereo audio output can extract audio signal from output A.

Features:

• Four HDMI input signals switched or split to two HDMI sink devices
• One of the HDMI output is with audio output by SDPIF and 3.5mm Stereo Audio output
• Audio sync separator output can be achieved with 2CH, 5.1CH, Pass three audio modes selectable
• Support 3D
• Support 4K X 2K
• With HDMI-CEC function
• Support deep color 30bit, 36bit
• Support Blue-Ray 24/50/60fps/HD-DVD/xvYCC
• Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/Dolby-AC3/DSD
• Support signal retiming
• Support input up to 15metres AWG24 HDMI standard cable length
• output up to 25 metres AWG24 cable length
• Inputs can be switched with the IR remote control, also can be controled by two buttons
• MHL interface RCP function, OUT A supports RCP function. Through the TV remote control
• to realize the control of the mobile device and matrix switch (mobile devices should support RCP
• unction and TV support CEC function)
• MHL/HDMI two working mode. Two inputs combined in one, effectively reduced the inputs numbers
• It can smartly jump over those sources which are not connected
• It can come back to the default the input 1 status when testarted or teset
• LED Indecate: when someone source device or someone sink display device is working, the
• LED relative will come to light;when someone source is selected to any sink, the LED relative
• to the source will come to light
• No loss of quality
• Installs in minutes
• Need DC 5V/2A power supply

Specifications:

HDMI resolution..............24/50/60fps/1080p/1080i/720p/576p/576i/480p/480i
Support video color format........................24 bit/deep color 30 bit,36 bit,48 bit
Support audio format......DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Audio output.............................................................SPDIF and 3.5mm Stereo
Max transmission bandwidth................................................................340MHz
Max baud rate....................................................................................10.2Gbps
Input/Output TMDS signal........................................................0.5~1.5Volts p-p
Input/Output DDC signal..........................................................5Voltsv p-p(TTL)
Input cable distance...................................≤15m AWG24 HDMI standard cable
Output cable distance................................≤25m AWG24 HDMI standard cable
Max working current.............................................................................1300mA
Power adapter format..........Input:AC(50Hz,60Hz)100V-240V;Output:DC5V/2A
Operating Temperature range.....................................................(-15 to +55℃)
Operating Humidity range.................................5 to 90%RH(No Condensation)
Dimension(LxWxH)..................................................................250x27x75(mm)
Weight.......................................................................................................380g

Certifications: CE FCC RoHS

Package List:

1. 5VPower Adaptor
2. Remote
3. One pc of Manual
4. MHL-HDMI Line
