IR Extender Over HDMI Extender Receiver Transmitter Cable Kit

           HY-IR0101-P-I IR Extender Over HDMI Extender Receiver Transmitter Cable Kit

HY-IR0101-P-I IR Extender Over HDMI Extender Receiver Transmitter Cable Kit Introduction

This kit allows you to control any A/V device such as your cable box, A/V amp/receiver, etc. that has an HDMI cable connecting your A/V device to your TV or Display. A popular use of the kit is when the device you want to control is in a different room or behind closed doors. The kit uses the CEC channel that is part of almost all HDMI cables. Some older HDMI cables will not work because they do not have the needed channel. A good quality HDMI cable will allow you to control your device from up to 75 feet or more. The higher the quality of your cable the longer the transmit distance.

HY-IR0101-P-I IR Extender Over HDMI Extender Receiver Transmitter Cable Kit Usage

Any remote that controls your A/V device will work with this kit. Most Universal Remotes can be used with this set-up.

Installation is simple. Attach each end of your HDMI cable to one of the adapters. Then plug the adapters directly into the device you want to control and into the display device such as your TV. Both adapters must be set to [IR". Then plug the IR receiver cable into the 3.5 mini connector on the adapter at your display and mount it where your remote can see the front of the IR receiver casing. At the A/V device you want to control you plug the IR Emitter cable into the 3.5 mini connecter on the adapter you installed and place the Emitter casing near the IR receiver in the front panel of the A/V device.

HY-IR0101-P-I IR IR Extender Over HDMI Extender Receiver Transmitter Cable Kit Specifications:

Carrier frequency- Broadband (20kHz to 60kHz),

IR receiving distance: 8M

Max Operating Current: 15mA,

Cable length of IR Receiver and Emitter: 25M

IR Adapter size: 1.50"L x 0.83"W x 0.43"H. No additional power is required.

Certificates CE FCC RoHs

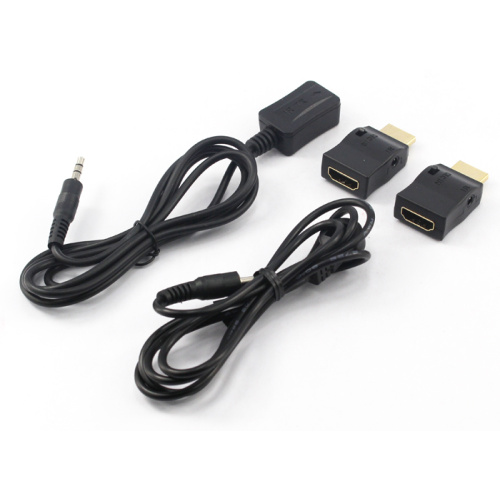

HY-IR0101-P-I IR Extender Over HDMI Extender Receiver Transmitter Cable Kit  Package Content

1 x receiver adapter

1 x sender adapter

1 x IR receiver cable

1 x IR emitter cable
