HDMI Extender over Cat 5e/6/7 1080P 60M

   HY-CAT5e6-60M-S HDMI Extender, Powered HDMI Repeater over Cat 5e / 6 Ethernet Cable, Supports Full HD 1080P up to 60M

HY-CAT5e6-60M-S HDMI Extender, Powered HDMI Repeater over Cat 5e / 6 Ethernet Cable, Supports Full HD 1080P up to 60M Introduction

It is equipped with HDMI (high definition multimedia interface)connectors and is capable of supporting DVI (digital visual interface) equipment when used with an HDMI  to DVI Adapter,providing greater  flexibility and options when  integrating several home theater components.

This product offers solutions for residential consumers:HDTV retail and show site. HDTV, STUB, DVD  and Projector factories,noise,  space  and  security  concerns.data center control,information distribution,conference room presentation,school and corporate training environments.

This kind of HDMI Extender by CAT-5e/6 uses two pieces of UTP cable with cross stand  inside  to extend  the HDTV dispaly up  to 50 meters  for 1080p.  It not only breaks  the  l imitation of  the HDMI cable  transmission  length,but also CAT-5e/6 has more flexibi l ity and convenience in cable construction.

HY-CAT5e6-60M-S HDMI Extender, Powered HDMI Repeater over Cat 5e / 6 Ethernet Cable, Supports Full HD 1080P up to 60M Features

This HDMI Extender has many features that enable it to perform in a superior
manner. Among those features you will find:
• One pair as a full functional module,no need of setting.
• CAT-5e/6 cable can substitute HDMI cable to achieve long distance
   transmission.
• Fol low the standard of IEEE-568B.
• Transmission distance can be up to 50 meters for 1080p using UTP canle with
   cross stand inside
• Auto-adjustment of feedback,equalization and amplify, the user does not
   need to care about the length of the cable.
• Compact size.
• Supports HDMI 1.2a.
• Supports highest video resolution 1080p.
• Supports 165MHz/1.65Gbps per channel (4.9Gbps al l channel) bandwidth.
• Supports 8bit per channel (24bit al l channel) deep color.
• Supports HDCP Support uncompressed audio such as LPCM.
• Supports compressed audio such as DTS Digital,Dolby Digital(including
  DTS-HD and Dolbu True HD

HY-CAT5e6-60M-S HDMI Extender, Powered HDMI Repeater over Cat 5e / 6 Ethernet Cable, Supports Full HD 1080P up to 60M Specifications

Input Video Signal....................................................................5 Volts p-p(TTL)
Maximum Single Link Range.......................................................1920 x 1080P
Output Video.......................................................................... HDMI 1.2 a + HDCP 1.0/1.1
HDMI Input/Output Connector.....................................................Type A 19 pin

Vertical Frequency Range.............................................................50/60Hz
Video Amplifier Bandwidth..............................................................1.65Gbps / 165MHz
Inter laced(50 & 60Hz).......................................................... 480i,576i,1080i
Progressive(50 & 60Hz)........................................................ 480p,576p,1080p
Size(H-W-D)......................................................................45mmW x 25mmH x 81mmD
Weight(Net)......................................................................0.24KG
Limited Warranty........................................................... 1 Year Parts and Labor
Operating Temperature................................................... 0 ℃ to + 70℃
Operating Humidity.............................................................10% to 85% RH(no condensation)
Storage Temperature..............................................................-10℃ to  + 80℃
Storage Humidity................................................................5% to 90% RH(no condensation)
External Power Supply.........................................................5V DC@2A
Power consumption(Max).....................................................5W
Converter Unit....................................................................FCC,CE,UL
Power Supply.....................................................................UL,CE,FCC
AC Power Adapter.................................................................US standard,UK standard and so on

Certificates CE FCC and RoHs

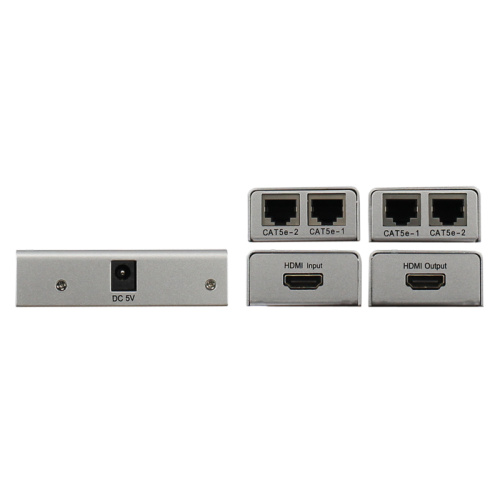

HY-CAT5e6-60M-S HDMI Extender 60M Over Dual Cat 5e/6 Package content

1 x HDMI Extender receiver

1 x HDMI Extender sender

1 x Power Adapter

1 x User manual
