CAT 5e 120M HDMI Extender
- Payment Type:
- L/C, T/T, D/P, Paypal, Money Gram, Western Union, Cash
- Incoterm:
- FOB, CIF, exws
- Min. Order:
- 100 Bag/Bags
- Min. Order:
- 100 Bag/Bags
- Delivery Time:
- 7 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen Chiwan, Shenzhen Yantian
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 100000pcs/month |
| Supply Ability: | 100000pcs/month |
| Payment Type: | L/C,T/T,D/P,Paypal,Money Gram,Western Union,Cash |
| Incoterm: | FOB,CIF,exws |
| Certificate: | CE FCC UL Rohs |
| HS Code: | 8543709990 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen Chiwan,Shenzhen Yantian |

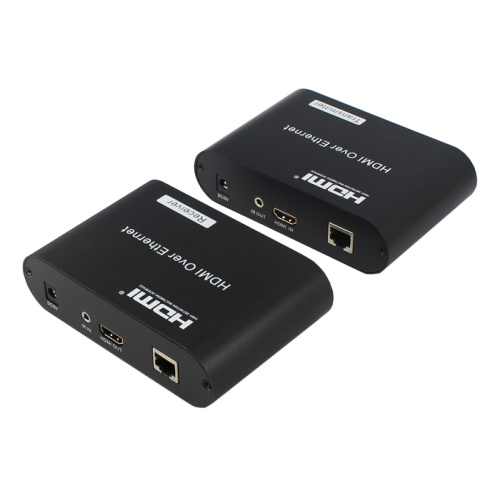

HY-Cat5e6-120M CAT 5e 120M HDMI Extender
HY-Cat5e6-120M CAT 5e 120M HDMI Extender Introduction
HDMI Over Ethernet is based on TCP/IP standard.It transmit your HD display with the high resolutions up to 395 feet(120 meters) away from your HDMI or DVI-D source by using one CAT 5e/6 cable.With the advantage of displays by using an TCP/IP standard.you can extend your HD video to multiple Ethernet Switch.
HY-Cat5e6-120M CAT 5e 120M HDMI Extender Connection and operation
1. Connect the HDMI source(such as DVD,PS3,STB) to the HDMI IN of Sender.
2. Connect the IR sender to the Sender IR OUT Port,and Be Directed at HDMI video source`s IR receiver.
3. Connect the HDMI out of Receiver to HDTV display.
4. Connect the IR receiver to the Receiver IR IN Port.
5. Use one Cat 5e/6 cable up to 120m to connect the Sender and Receiver.
6. Plug two pieces of 5V power supply into the Sender and Receiver.
7. Power on the HDTV display and HDMI source.
HY-Cat5e6-120M CAT 5e 120M HDMI Extender Specifications
Following TCP/IP standard.
Support HDMI 1.3 protocol.
HDCP1.1 &1.2 protocol compliant.
Support point-to-point mode,one point-to-many mode and cascade connection mode.
Support IR extender function allows IR remote control of Source devices from remote viewing location by sending IR commands received in the vicinity of the Display back to the Source devices.
HDTV Resolutions......................................................................480p,576p,720p,1080p
Audio..........................................................................................Sample rate:32kHz,44.1kHz and 48kHz
IR remote control......................................................................38kHz;NEC
HDMI.........................................................................................HDMI 1.3
HDCP.........................................................................................HDMI 1.2
Power adapter...........................................................................Input:100V - 240V(50-60Hz) Output:5V/1A
Power consumption....................................................................HDMI Sender:3W HDMI Receiver:3W
Size(L-W-H)...............................................................................128x84x34mm
Weight........................................................................................123g
Operating Temperature/Humidity...................................................0 ℃ to + 70℃ /10% to 80% RH(no condensation)
Storage Temperature/Humidity......................................................-10℃ to + 80℃ /5% to 90% RH(no condensation)
Certificates CE FCC RoHs and Power adapter UL certified
HY-Cat5e6-120M CAT 5e 120M HDMI Extender Package Content
1 x Sender
1 x Receiver.
2 x DC 5V Power Adapter
1 x IR transmitter
1 x IR receiver.
1 x User Manual
