60M Singel cat5e/6 HDMI Extender receiver

                                 HY-CAT5E6-60M 60M Singel cat5e/6 HDMI Extender receiver

HY-CAT5E6-60M 60M Singel cat5e/6 HDMI Extender receiver Introduction

It is equipped with HDMI (high definition multimedia interface) connectors and is capable of supporting DVI (digital visual interface) equipment when used with an HDMI to DVI Adapter, providing greater flexibility and options when integrating several home theater components.

This product offers solutions for residential consumers: HDTV retail and show site. HDTV, STUB, DVD and Projector factories, noise, space and security concerns. data center control, information distribution, conference room presentation, school and corporate training environments.
This kind of HDMI Extender by CAT-5e/6 uses pieces of UTP cable with cross stand inside to extend the HDTV display up to 60 meters for 1080p. It not only breaks the limitation of the HDMI cable transmission length, but also CAT-5e/6 has more flexibility and convenience in cable construction.

HY-CAT5E6-60M 60M Singel cat5e/6 HDMI Extender receiver  Features

This HDMI Extender has many features that enable it to persorm in a superior manner. Among those features you will find:
One pair as a full functional module, no need of setting.
CAT-5e/6 cable can substitute HDMI cable to achieve long distance transmission.
Follow the standard of IEEE-568B.
Transmission distance can be up to 50 meters for 1080p using UTP cable with cross stand inside
Auto-adjustment of feedback, equalization and amplify, the user does not need to care about the length of the cable.
Compact size.
Supports HDMI 1.2a.
Supports highest video resolution 1080p.
Supports 165MHz/1.65Gbps per channel (4.9Gbps all channel) bandwidth.
Supports 8bit per channel (24bit all channel) deep color.
Supports HDCP Support uncompressed audio such as LPCM.
Supports compressed audio such as DTS Digital, Dolby Digital (including DTS-HD and Dolbu True HD)

HY-CAT5E6-60M 60M Singel cat5e/6 HDMI Extender receiver  Specifications

Input Video Signal: 5 Volts p-p(TTL)
Maximum Single Link Range: 1920x1080P
Output Video: HDMI 1.2a + HDCP1.0/1.1
HDMI Input/Output Connector: Type A 19 pin

HY-CAT5E6-60M 60M Singel cat5e/6 HDMI Extender receiver  Connection and operation

1)  Connect the HDMI sources such as: HD-DVD, PS3, STB etc.
2)  Connect  CAT-5e/6 cables to both the output of transmitter and input of the receiver.
3)  Connect the HDMI output (such as: HD-LCD, HD-DLP) into the receiver.
4)  Plug the power into the receiver.

Certificates CE FCC and RoHs

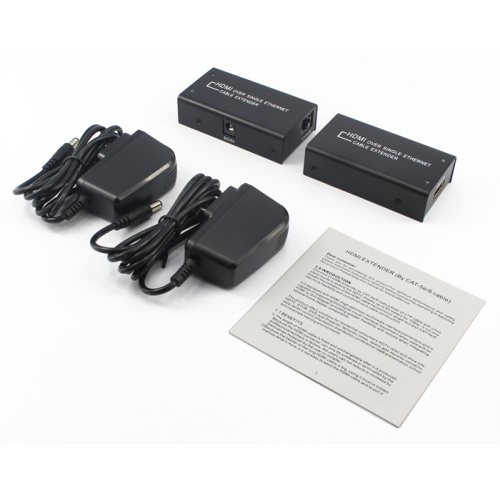

HY-CAT5E6-60M 60M Singel cat5e/6 HDMI Extender receiver Package content

1)  Main unit NO.1 Sender
2)  Main unit NO.2 Receiver
3)  5V DC Power Supply
4)  User's Manual
