Mini HDMI to AV converter
- Payment Type:
- L/C, T/T, Paypal, Western Union
- Incoterm:
- FOB, CIF, EXW
- Min. Order:
- 100 Set/Sets
- Min. Order:
- 100 Set/Sets
- Delivery Time:
- 7 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen Chiwan, Shenzhen Yantian, Shenzhen Yunzuo
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 10000pcs/day |
| Supply Ability: | 10000/day |
| Payment Type: | L/C,T/T,Paypal,Western Union |
| Incoterm: | FOB,CIF,EXW |
| Certificate: | CE FCC RoHs |
| HS Code: | 8543709990 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen Chiwan,Shenzhen Yantian,Shenzhen Yunzuo |

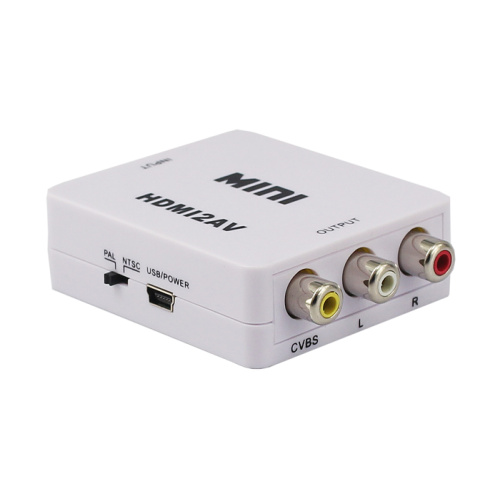

HY-201-H1-V0 Mini HDMI to AV converter
HY-201-H1-V0 Mini HDMI to AV converter Introduction
HY-201-H1-V0 Mini HDMI to AV converter which will convert HDMI video signal or audio signal to AV (CVBS) composite video signal and the FL / FR stereo audio signals, while support DVI system side line signal. To help users convert the high quality of the HDMI video signal into normal CVBS signal ( standard-definition 480i,576i ). So that can play on TV, VHS VCR,DVD recorders, etc and support NTSC and PAL two TV format.
HY-201-H1-V0 Mini HDMI to AV converter Features
1. No need to instal l drivers,portable,flexible,plug and play
2. Low power , No power adaptor
3. Support NTSC and PAL two standard TV formats output
4. Compatible HDMI1.4b
HY-201-H1-V0 Mini HDMI to AV converter Specifications
1. Input ports:1 x HDMI
2. Output ports: 1 x RCA( Yellow, White, Red)
3. Dimensions(mm):66(D) x 55(W) x 24(H)
4. Wight(g): 45.5
5. HDMI Input Resolution:
720x480i@50/60Hz, 720x480p@50/60Hz,640x480p@60Hz,800x600p@60Hz,1024x768p @60Hz,1280x1024p @60Hz,1280x720p @60Hz,1280x960p @60Hz,1280x720i@50/60Hz, 1280x720p@50/60Hz, 1360x768p @60Hz,1920x1080i@50/60Hz, 1920x1080p@50/60Hz
6. CVBS output: PAL and NTSC
Certificates CE FCC and RoHs
HY-201-H1-V0 Mini HDMI to AV converter Package content
1) Main unit (HDMI to AV Converter)---------------1PC
2) USB Line---------------------------------------------1PC
3) User Manual-----------------------------------------1PC
